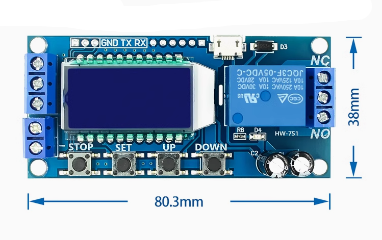

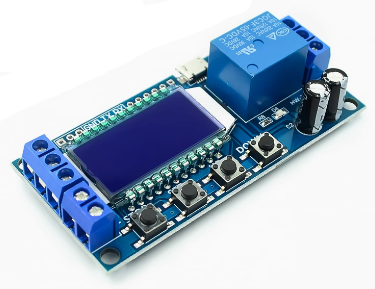

XY-LJ02 DC 6-30V Single-Channel Relay Module – Delay Power-Off, Triggered Timer, Cycle Timing Circuit Switch

SKU: FA2190-3
Model

XY-LJ02
Input Voltage

DC 6V – 30V
Relay Rating

10A at 250V AC / 30V DC
Channels

1 (single-channel)
Timing Modes

Delay power-off, triggered timer, cycle timing
Display

Digital LED display
Configuration

Onboard buttons
Terminal Type

Screw terminals

The XY-LJ02 DC 6-30V Single-Channel Relay Module is a versatile, programmable timing relay board designed for automated control of electrical devices with delay power-off, triggered timer, and cycle timing functions. It combines a high-current relay with a digital timer circuit, making it an ideal solution for applications requiring precise time-based switching — from industrial automation to home automation and DIY electronics.

The module operates from a wide DC 6V to 30V input range, making it compatible with 12V and 24V systems, as well as battery-powered setups. The onboard high-current relay is rated for 10A at 250V AC or 30V DC, capable of directly switching lamps, motors, pumps, solenoids, and other loads.

The XY-LJ02 offers multiple operating modes to suit different timing requirements. Delay power-off mode allows the relay to remain active for a set period after the trigger signal is removed. Triggered timer mode activates the relay for a set duration when a trigger signal is received. Cycle timing mode enables the relay to cycle on and off repeatedly at user-defined intervals. These modes are configurable through the onboard buttons and displayed on the digital LED display.

The module features a digital LED display that shows the current time settings and operating status, making configuration straightforward. The onboard buttons allow you to adjust delay times, cycle intervals, and operating modes without any external programmer or computer. The screw terminals provide secure connections for power, trigger input, and relay output.

The XY-LJ02 is widely used in industrial control, home automation, irrigation systems, lighting control, motor sequencing, and DIY timing projects. Its compact form factor and simple operation make it suitable for both beginners and experienced users.

Whether you are automating a garden irrigation system, sequencing motors in an industrial process, or building a custom timing circuit, the XY-LJ02 Single-Channel Relay Module provides a reliable, programmable solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.

Features

  • Wide input voltage — DC 6V to 30V operating range

  • High-current relay — 10A at 250V AC / 30V DC switching capacity

  • Delay power-off mode — Relay remains active for set period after trigger removal

  • Triggered timer mode — Relay activates for set duration when triggered

  • Cycle timing mode — Relay cycles on and off repeatedly at set intervals

  • Digital LED display — Shows time settings and operating status

  • Onboard buttons — Configure modes and timings without external tools

  • Screw terminals — Secure connections for power, trigger, and load

  • Compact form factor — Suitable for embedding into enclosures and panels

  • Wide application range — Industrial control, home automation, irrigation, lighting

Technical Specifications

# Parameter Specification
1 Model XY-LJ02
2 Input Voltage DC 6V – 30V
3 Relay Rating 10A at 250V AC / 30V DC
4 Channels 1 (single-channel)
5 Timing Modes Delay power-off, triggered timer, cycle timing
6 Display Digital LED display
7 Configuration Onboard buttons
8 Terminal Type Screw terminals

Usage

Getting Started

  1. Connect power — Supply DC 6V–30V to the power input terminals. Observe correct polarity.

  2. Connect the trigger input — Wire your trigger signal source to the trigger input terminals (if using triggered mode).

  3. Connect the load — Wire the device you want to control to the relay output terminals (NO/NC/COM).

  4. Configure the timing mode — Use the onboard buttons to select the desired mode and set the timing values. The LED display shows the current settings.

  5. Power on and test — Apply power and trigger signal. The relay will activate according to your configured timing.

Timing Mode Descriptions

Mode Function Application
Delay Power-Off Relay stays active for set time after trigger removal Delayed lighting, fan run-on
Triggered Timer Relay activates for set duration when triggered Timed motor operation, process control
Cycle Timing Relay cycles on/off repeatedly at set intervals Flashing lights, periodic operation

Typical Applications

  • Industrial control — Motor sequencing, process timing, equipment protection

  • Home automation — Delayed lighting, automatic garden irrigation

  • Irrigation systems — Scheduled watering cycles

  • Lighting control — Timed on/off cycles, delayed shutoff

  • Motor control — Start/stop delays, run-on timers

  • DIY timing projects — Custom timing circuits for various applications

Notes for Business Buyers

  • Versatile timing modes — One module supports multiple timing functions, reducing inventory SKUs.

  • Wide voltage compatibility — Works with 6V–30V systems.

  • High-current relay — 10A capacity covers most small-to-medium power devices.

  • Suitable for bulk purchasing — Ideal for industrial control, automation, and educational programs.

Q: What is the XY-LJ02 Relay Module used for?

It is a programmable timing relay for automated control of electrical devices, supporting delay power-off, triggered timer, and cycle timing modes.

Q: What is the input voltage range?

The module operates from DC 6V to 30V.

Q: What is the relay rating?

The relay is rated for 10A at 250V AC or 30V DC.

Q: What timing modes does the module support?

It supports delay power-off mode, triggered timer mode, and cycle timing mode.

Q: How do I configure the timing?

Use the onboard buttons to select the mode and adjust timing values. The digital LED display shows the current settings.

Q: Does the module require an external programmer?

No. All configuration is done through the onboard buttons and LED display — no external programmer or computer is required.

Q: Can I control AC devices with this module?

Yes, if the relay is rated for AC voltage. The relay contacts can switch loads up to 250V AC / 10A. Ensure proper safety precautions when working with mains voltage.

Q: What is the difference between delay power-off and triggered timer modes?

Delay power-off: the relay remains active for a set time after the trigger signal is removed. Triggered timer: the relay activates for a set duration when a trigger signal is received.

Q: What is cycle timing mode?

Cycle timing mode makes the relay cycle on and off repeatedly at user-defined intervals, ideal for flashing lights and periodic operation.

Q: Can I purchase in bulk for an industrial project?

Yes. This module is suitable for both individual users and business purchasing, including industrial control, home automation, and educational programs.
