TPA3110 XH-A232 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier Board DC 8-26V 3A C6-001(Old Version)

SKU: FA2006-1-1
Amplifier Chip

Texas Instruments TPA3110
Channels

2.0 (Stereo)
Output Power

30W + 30W
Supply Voltage

DC 8V – 26V
Current Requirement

3A maximum
Speaker Impedance

4 – 8Ω
Signal-to-Noise Ratio

100dB
Board Dimensions

53 × 45 × 14 mm

The TPA3110 XH-A232 is a compact, high-efficiency Class-D stereo audio amplifier board designed for DIY audio projects, portable speakers, home audio systems, and professional sound applications. Built around the Texas Instruments TPA3110 chip, this board delivers 30W per channel (stereo) with exceptional clarity and minimal distortion, all in a footprint measuring just 53 × 45 mm.

At the heart of the board is the TPA3110D2 Class-D amplifier IC, which operates with up to 90% efficiency — eliminating the need for bulky external heat sinks and making the board ideal for compact, portable designs . The board supports a wide DC input voltage range of 8V to 26V with a current requirement of 3A or higher, providing flexible power options for various setups . The signal-to-noise ratio of 100dB ensures clean, detailed audio reproduction with minimal background noise .

The amplifier board features 2.0 channel stereo output, capable of driving speakers with 4–8Ω impedance at up to 30W+30W . The SpeakerGuard™ protection circuitry includes adjustable power limiting and DC detection, protecting both the amplifier and connected speakers from damage . Additional built-in protections include short-circuit protection, thermal protection, and reverse polarity protection .

This C6-001 (Old Version) variant represents the original board revision, which remains a popular choice for hobbyists and builders who prefer the proven design. The board uses surface-mount components and a compact layout that fits easily into small enclosures, custom speaker builds, and portable audio projects.

Whether you are building a portable Bluetooth speaker, upgrading a computer audio setup, or creating a custom sound system, the TPA3110 XH-A232 provides a reliable, efficient, and cost-effective amplification solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.

Features

  • TPA3110D2 Class-D amplifier IC — High-efficiency design with up to 90% efficiency and no need for external heat sinks

  • 30W+30W stereo output — Delivers powerful, room-filling audio through dual channels

  • Wide voltage range — Operates from DC 8V to 26V, supporting diverse power supply options

  • 4–8Ω speaker compatibility — Drives standard speaker loads with ease

  • 100dB signal-to-noise ratio — Clean, detailed audio reproduction

  • SpeakerGuard™ protection — Adjustable power limiter and DC detection safeguard speakers

  • Comprehensive built-in protections — Short-circuit, thermal, and reverse polarity protection

  • Compact form factor — 53 × 45 mm surface-mount board fits easily into small enclosures

Technical Specifications

# Parameter Specification
1 Amplifier Chip Texas Instruments TPA3110
2 Channels 2.0 (Stereo)
3 Output Power 30W + 30W
4 Supply Voltage DC 8V – 26V
5 Current Requirement 3A maximum
6 Speaker Impedance 4 – 8Ω
7 Signal-to-Noise Ratio 100dB
8 Board Dimensions 53 × 45 × 14 mm

Usage

Getting Started

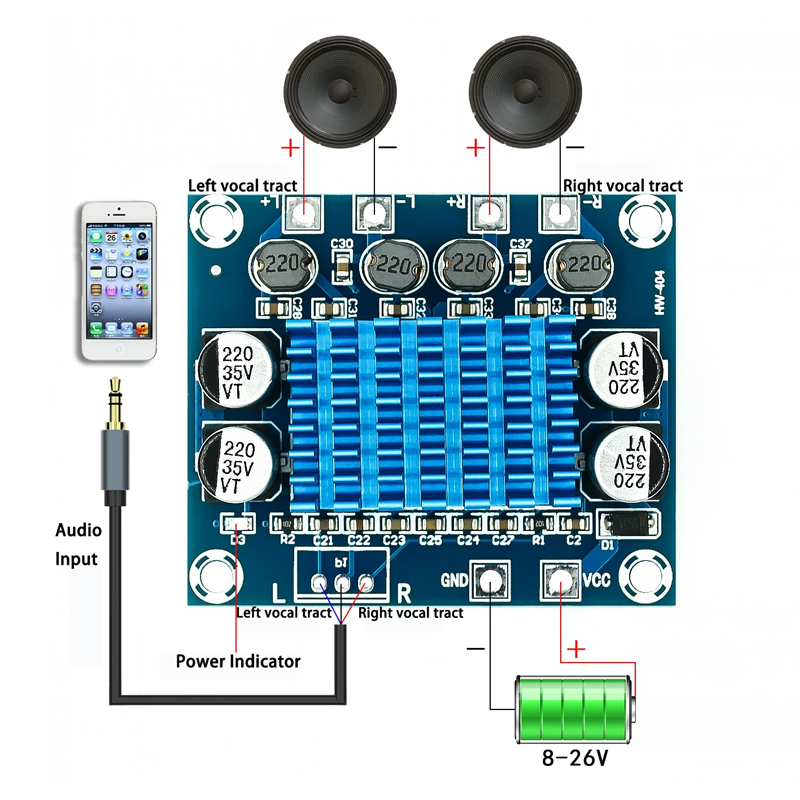

  1. Connect power supply — Connect a DC power supply (8V–26V, 3A minimum) to the board‘s power input terminals. Observe correct polarity; reverse polarity may damage the board despite built-in protection .

  2. Connect audio input — Connect your audio source (computer, phone, MP3 player, etc.) to the input terminals. Use a 3.5mm audio cable or stripped wires, ensuring left and right channels are correctly matched .

  3. Connect speakers — Connect speakers with 4–8Ω impedance to the output terminals. Match left and right channels correctly. Ensure speakers are rated for at least 30W to handle the amplifier’s output .

  4. Power on and test — Turn on the power supply and adjust the audio source volume. The board should begin operation immediately .

Important Notes

  • Heat dissipation — While the TPA3110 is highly efficient, ensure adequate ventilation for sustained high-power operation. A small heat sink may be beneficial in enclosed spaces .

  • Power supply quality — Use a stable, clean power supply to avoid noise and distortion in the audio output .

  • Input signal level — Ensure the audio input signal is within the acceptable range to prevent clipping and distortion.

Typical Applications

  • Portable Bluetooth speakers — Compact size and high efficiency suit battery-powered designs

  • DIY audio projects — Ideal for custom speaker builds and sound systems

  • Computer audio upgrades — Replace weak onboard audio with powerful amplification

  • Home audio systems — Drive bookshelf or small floor-standing speakers

  • Educational projects — Teaching audio amplifier principles and Class-D technology

Notes for Business Buyers

  • Proven design — The C6-001 Old Version remains a widely used and trusted board revision.

  • Cost-effective — Efficient Class-D design reduces component count and eliminates heat sink costs.

  • Suitable for bulk purchasing — Ideal for product development, educational kits, and volume production.

Q: What is the TPA3110 XH-A232 amplifier board used for?

It is a stereo audio amplifier board for DIY audio projects, portable speakers, home audio systems, and any application requiring efficient 30W+30W stereo amplification.

Q: What is the power output of this board?

The board delivers 30W per channel (30W+30W) into 4–8Ω speakers .

Q: What power supply does this board require?

It operates from a DC 8V to 26V power supply with a current capacity of 3A or higher

Q: What speakers can I use with this board?

Use speakers with 4–8Ω impedance and a power rating of at least 30W for optimal performance .

Q: Does this amplifier need a heat sink?

No. The TPA3110 Class-D design operates at up to 90% efficiency, eliminating the need for external heat sinks in most applications .

Q: What is the signal-to-noise ratio?

The board has a signal-to-noise ratio of 100dB, ensuring clean audio reproduction .

Q: What protections does the board include?

It includes SpeakerGuard™ protection (adjustable power limiter and DC detection), short-circuit protection, thermal protection, and reverse polarity protection .

Q: What is the difference between this C6-001 Old Version and newer versions?

The C6-001 Old Version is the original board revision. While newer revisions may exist, the old version remains popular for its proven design and reliability.

Q: Can I use this board with a battery?

Yes, as long as the battery voltage is within the 8V–26V range. A 12V battery is a common choice for portable applications.

Q: Can I purchase in bulk for a product development project?

Yes. This amplifier board is suitable for both individual users and business purchasing, including product development, educational programs, and volume production.
