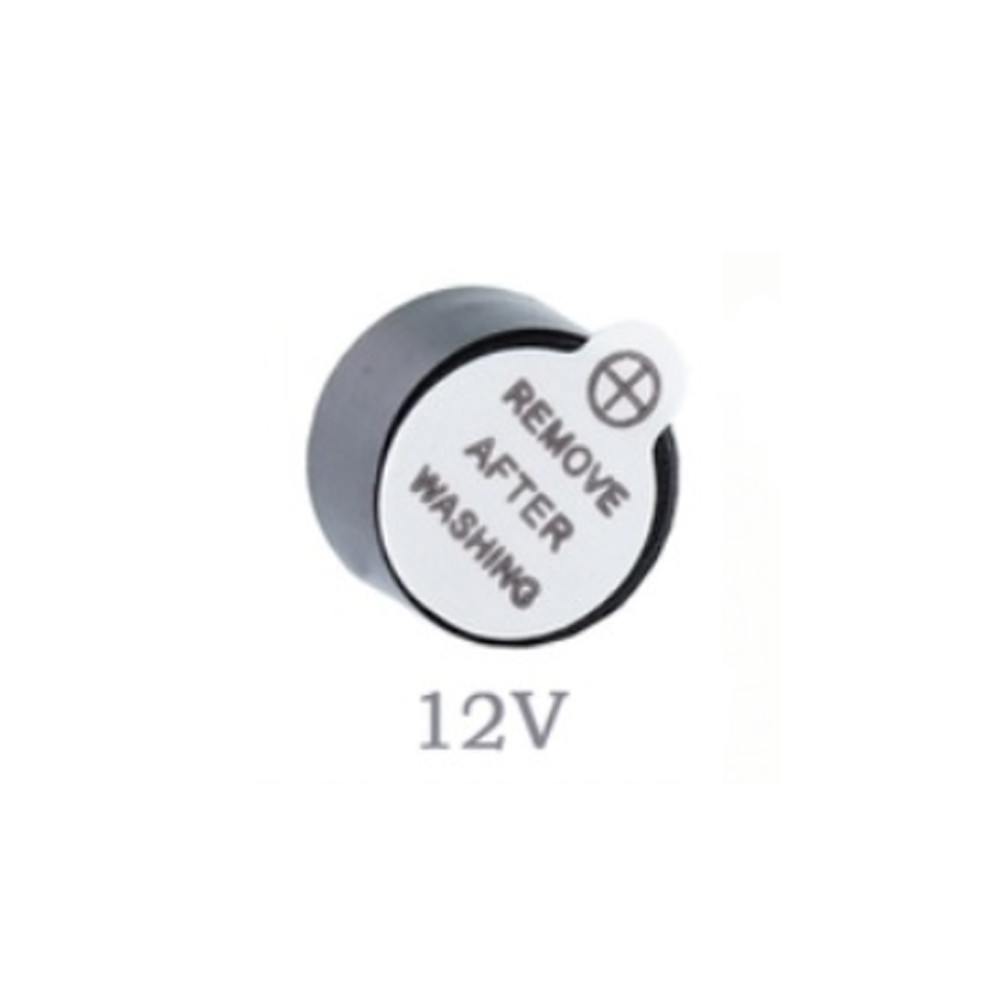

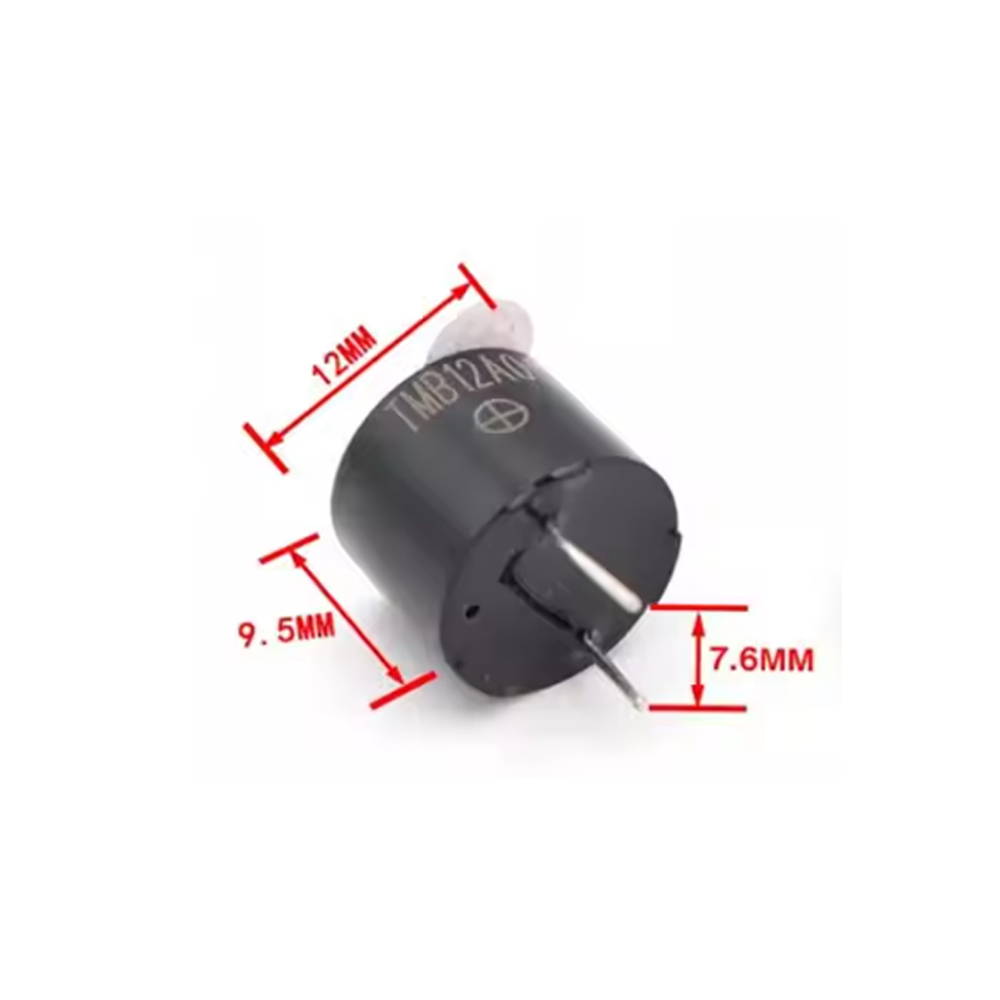

The TMB12A12 Active Buzzer Module is a robust, high-performance electromagnetic sound generator designed for 12V DC applications requiring clear audible alerts, alarms, and status feedback. Housed in a standard 12mm × 9.5mm cylindrical package (12095 form factor), this active buzzer features a built-in driving circuit, meaning it produces a fixed-frequency tone simply by applying a DC voltage within its operating range — no external PWM signal, tone generator, or complex driver circuitry is required .
At the heart of the TMB12A12 is an electromagnetic driving mechanism with an integrated oscillator module. When a DC voltage between 8V and 16V is applied across its two pins, the internal circuit generates an alternating current that drives the electromagnetic coil. This creates a cyclic magnetic field that causes the internal diaphragm to vibrate at a fixed resonant frequency of 2.3kHz to 2.4kHz, producing a clear, continuous tone . The sound pressure level reaches 85dB at 10cm when driven at the rated 12V, making it suitable for industrial, automotive, and indoor alert applications .
The TMB12A12 is specifically designed for 12V systems, making it ideal for automotive electronics, industrial control panels, security systems, and equipment that operates from 12V power rails . Its low current consumption of approximately 30mA is suitable for battery-backed and energy-conscious designs . The buzzer features a 2-pin through-hole (DIP) package with standard pin spacing, making it easy to mount on breadboards and PCBs. The positive pin is marked on the housing, and the polarity must be observed during connection — incorrect polarity may damage the component.
The TMB12A12 is widely used in industrial equipment alarms, automotive warning systems, security alarm panels, instrumentation, medical devices, household appliances, and educational STEM projects . It is also a popular choice for Arduino and DIY projects where a simple 12V-compatible audible indicator is required.
Important Note: The TMB12A12 is an active buzzer — it produces a fixed tone when powered and cannot play melodies or variable frequencies. For variable tones, use a passive buzzer with PWM control instead. When driving directly from a microcontroller GPIO pin, note that the buzzer may draw up to 30mA, which exceeds the safe continuous current rating of many MCU pins (typically 20mA). For reliable operation, use an NPN transistor as a low-side switch to isolate the buzzer from the MCU . The buzzer is an open-frame design and is not waterproof — avoid exposure to moisture, corrosive gases, and direct contact with water.
Features
-
Active buzzer with built-in driving circuit — Produces sound directly from DC voltage; no PWM required
-
12V operation — Rated 12V, operating range 8V–16V; ideal for automotive and industrial systems
-
Fixed 2.3kHz–2.4kHz tone — Clear, stable continuous sound for alarms and notifications
-
85dB sound pressure — Loud enough for industrial and automotive alert applications
-
Low current consumption — Approximately 30mA, suitable for battery-backed designs
-

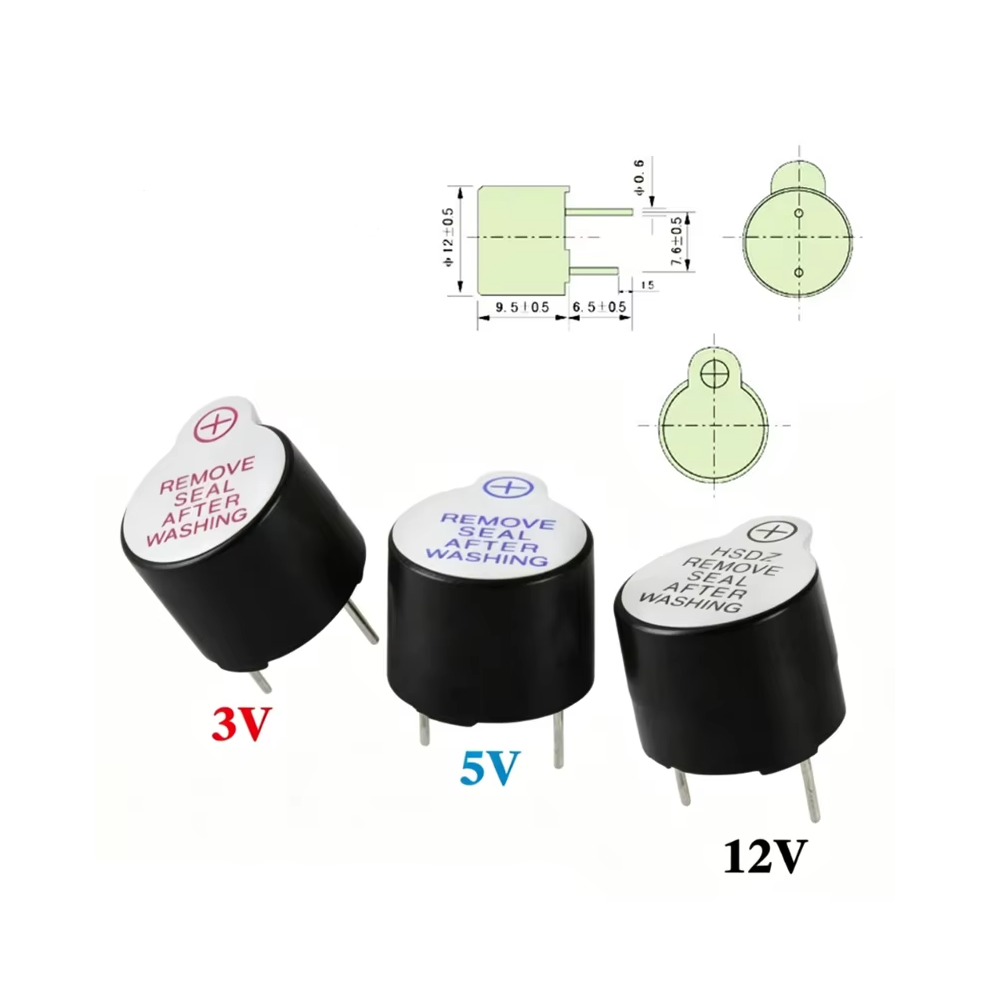

Compact 12×9.5mm package — Standard 12095 form factor for easy PCB integration
-
2-pin through-hole mounting — Simple breadboard and PCB installation
-
Clear polarity marking — Positive pin indicated on housing
-
Wide application range — Industrial equipment, automotive, security panels, instrumentation, medical devices
-
Cost-effective — Affordable solution for audible indication in volume production
Technical Specifications
Usage
Getting Started
-
Identify the pins — The positive terminal (+) is marked on the buzzer housing. Observe polarity carefully.
-
Connect power — Apply 12V DC (or 8V–16V) across the buzzer pins (positive to +, negative to -). The buzzer will produce a continuous tone immediately.
-
Control with a microcontroller — For MCU control, connect the buzzer through a transistor driver circuit (recommended) or directly to a GPIO pin if current is limited.
-
Transistor driver circuit — Connect buzzer positive to VCC (12V), buzzer negative to transistor collector, transistor emitter to GND, and transistor base to MCU GPIO through a resistor (e.g., 1kΩ).
-
Upload control code — Set the GPIO pin HIGH to turn the buzzer on, LOW to turn it off.
Pin Connections
Example Arduino Code (Direct GPIO Control)
#define BUZZER_PIN 8
void setup() {
pinMode(BUZZER_PIN, OUTPUT);
}
void loop() {
digitalWrite(BUZZER_PIN, HIGH);
delay(500);
digitalWrite(BUZZER_PIN, LOW);
delay(500);
}
Transistor Driver Circuit (Recommended for Reliable Operation)
Typical Applications
-
Industrial equipment alarms — Fault indicators, machine status alerts, process warnings
-
Automotive warning systems — Parking sensors, dashboard indicators, reverse alarms
-
Security alarm panels — Intrusion detection, door/window sensors
-
Instrumentation — Measurement equipment, test instruments, control panels
-
Medical devices — Blood pressure monitors, diagnostic equipment, patient alerts
-
Household appliances — Timers, washing machines, dryers, refrigerators
-
Educational STEM projects — Teaching digital output and sound generation at 12V
Notes for Business Buyers
-
Active buzzer — Fixed tone, no PWM required; simple DC voltage drive.
-
Transistor driver recommended — For MCU control and industrial designs, use a transistor to avoid exceeding GPIO current limits.
-
12V system compatibility — Ideal for automotive, industrial, and equipment applications operating from 12V rails.
-
Suitable for bulk purchasing — Ideal for industrial equipment manufacturers, automotive suppliers, and security system integrators.
Q: What is the TMB12A12 Active Buzzer used for?
It is an active electromagnetic buzzer for producing audible alerts and notifications in 12V systems, used in industrial equipment, automotive warning systems, security panels, and instrumentation .
Q: What is the difference between the TMB12A12 and TMB12A05?
The TMB12A12 is rated for 12V operation (8V–16V range), making it ideal for automotive and industrial systems. The TMB12A05 is rated for 5V operation (4V–8V range). Choose based on your system voltage .
Q: What voltage does the buzzer require?
The rated voltage is 12V DC, with a wide operating range of 8V to 16V DC .
Q: What is the sound output frequency and volume?
The buzzer produces a fixed tone at approximately 2.3kHz to 2.4kHz with a sound pressure level of 85dB at 10cm .
Q: How do I connect the buzzer to an Arduino?
For direct GPIO control: connect the positive pin (+) to a digital pin and the negative pin (-) to GND. However, for reliable operation, use a transistor driver because the buzzer may draw up to 30mA, exceeding safe GPIO current limits .
Q: Why does my buzzer only click instead of producing a continuous tone?
You may be using the Arduino tone() function, which is designed for passive buzzers. For active buzzers like the TMB12A12, use digitalWrite(pin, HIGH) to supply steady DC voltage instead.
Q: Can I use a transistor to drive the buzzer?
Yes, and it is recommended for reliable operation. Use an NPN transistor (e.g., 2N3904, S8050) with the buzzer connected between VCC (12V) and the collector, emitter to GND, and base to MCU GPIO through a 1kΩ resistor .
Q: Is the buzzer waterproof?
No. The TMB12A12 is an open-frame design and is not waterproof. Avoid exposure to moisture, water, and corrosive gases.
Q: Can I play different tones or melodies with this buzzer?
No. The TMB12A12 is an active buzzer with a fixed tone. It cannot play melodies or variable frequencies. For variable tones, use a passive buzzer with PWM.
Q: Can I purchase in bulk for a product development project?
Yes. The TMB12A12 is suitable for bulk purchasing by industrial equipment manufacturers, automotive suppliers, and security system integrators.
