The MQ-8 Hydrogen Gas Sensor is a low-cost, highly sensitive semiconductor gas detection module designed for monitoring hydrogen (H₂) and hydrogen-containing gases such as city gas (coal gas) in domestic, industrial, and portable gas detection applications. Built around the MQ-8 sensor with a tin dioxide (SnO₂) sensing layer, this module offers high sensitivity to hydrogen while maintaining good anti-interference capability against alcohol, cooking fumes, LPG, and CO. It is an ideal solution for household hydrogen leak alarms, industrial flammable gas detectors, and portable safety instruments.

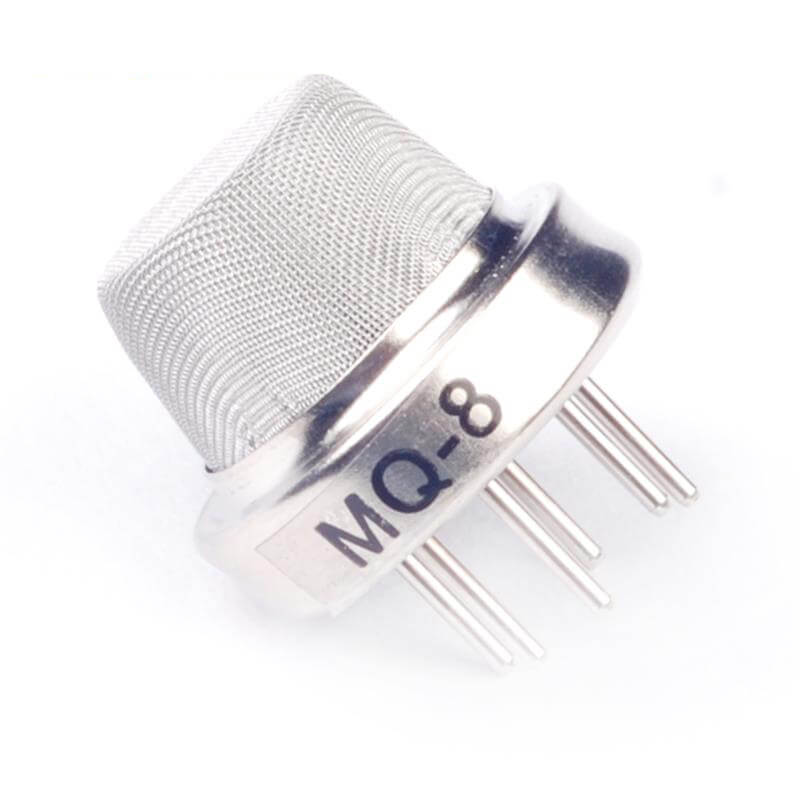

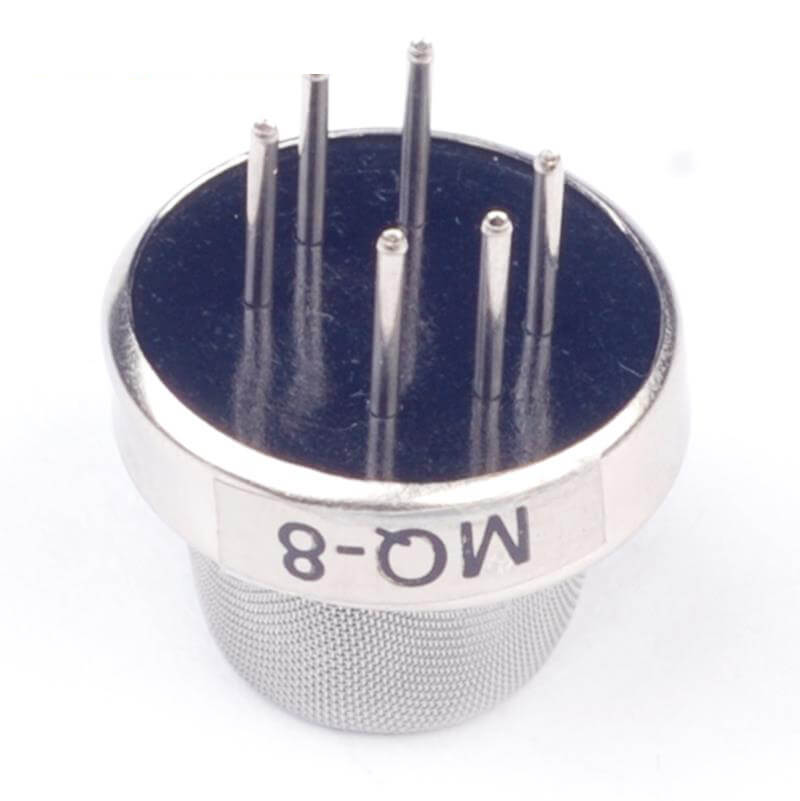

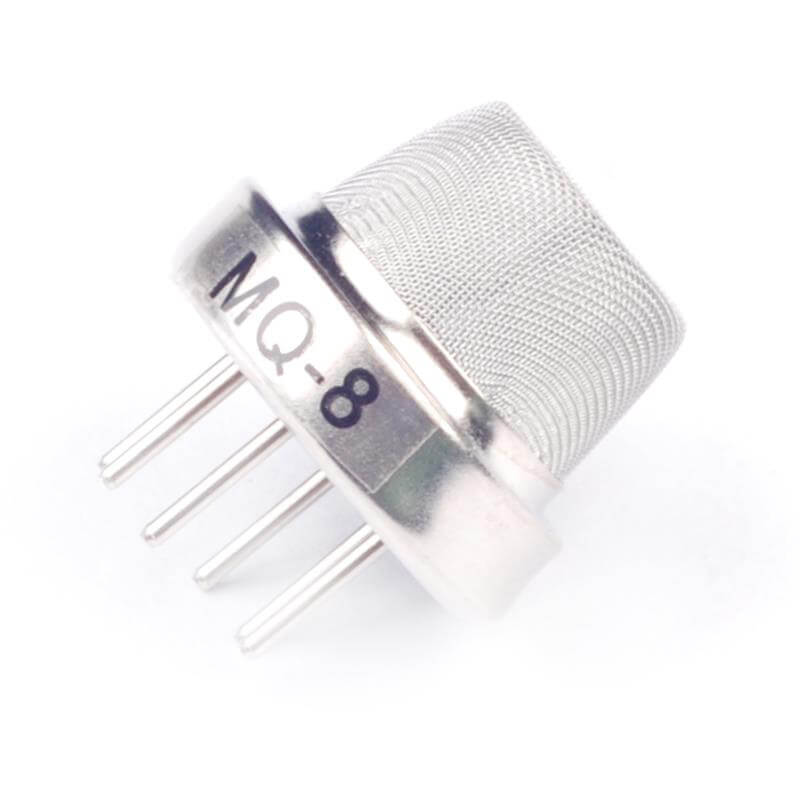

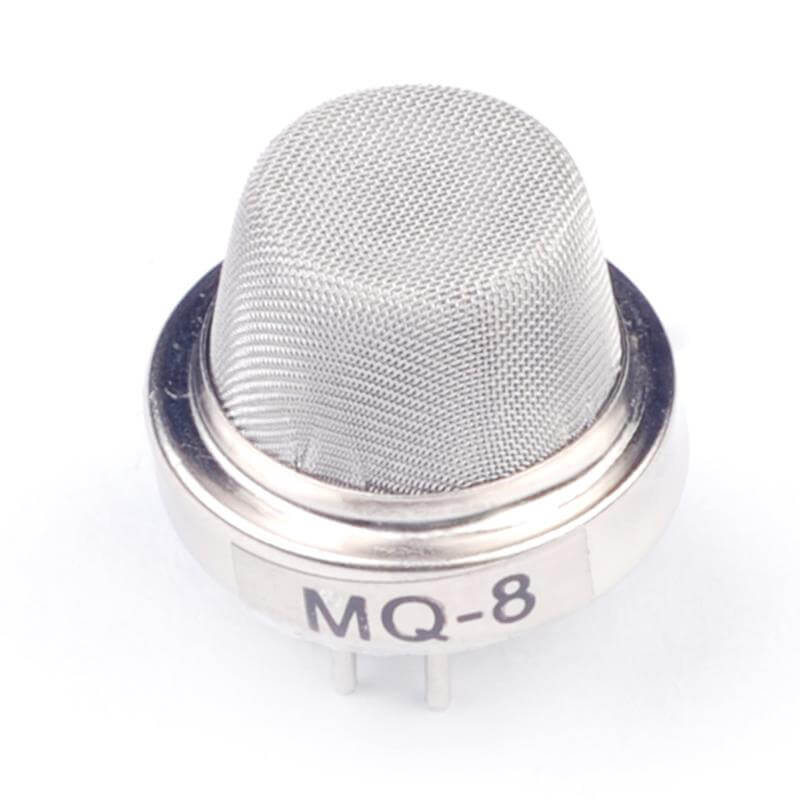

At the heart of the module is the MQ-8 sensor element, whose conductivity increases as the concentration of hydrogen rises. In clean air, the sensor exhibits low conductivity; when exposed to hydrogen, its resistance drops, producing a measurable change in output. The module provides two independent outputs: an analog output (AO) that varies continuously with gas concentration for trend monitoring, and a digital output (DO) that switches when the concentration exceeds a user-adjustable threshold set by the onboard potentiometer.
The module operates from 5V DC with a typical working current of less than 150mA. It is compatible with Arduino, ESP32, and other 5V microcontrollers; Raspberry Pi users require an external ADC. The board features a compact 22 × 38mm form factor with mounting holes, and an onboard LED indicator provides visual feedback for power and digital output status.
Important Note: The MQ-8 requires a significant preheat time for stable operation. The sensor should be powered on for more than 48 hours in clean air before initial calibration for accurate readings. After each power-up, allow at least 30 minutes for the heater to stabilize. The sensor is not a calibrated industrial-grade detector and should not be used as a sole life-safety device. Its sensitivity degrades over time, and periodic replacement is recommended for critical applications. The sensor surface becomes hot during operation — avoid touching it. The module is not waterproof and should be kept dry. Avoid exposure to corrosive gases, water, and overvoltage, which can damage the sensing element.
Whether you are building a home hydrogen leak alarm, an industrial H₂ detector, or an educational sensor project, the MQ-8 module provides a reliable, affordable solution for hydrogen gas detection.
Features
-
MQ-8 SnO₂ semiconductor sensor — High sensitivity to hydrogen (H₂) and city gas
-
Good anti-interference — Resistant to alcohol, cooking fumes, LPG, and CO
-
Dual output — Analog (AO) for concentration trends, Digital (DO) for threshold alarms
-
Adjustable threshold — Onboard potentiometer sets the digital output trigger point
-
Wide detection range — 100–1000 ppm for hydrogen (some variants up to 10,000 ppm)
-
5V operation — Compatible with Arduino, ESP32, and other 5V microcontrollers
-
LED indicators — Power and digital output status feedback
-
Compact form factor — 22 × 38mm PCB with mounting holes
-
Long lifespan — Specified for up to 10 years under proper operating conditions
-
Wide application range — Household gas alarms, industrial detectors, portable instruments
Technical Specifications
Usage
Getting Started
-
Connect power — Connect VCC to 5V and GND to ground. The onboard power LED should light up.
-
Connect outputs — Connect AO to an analog input on your microcontroller (e.g., A0 on Arduino) and DO to a digital input if threshold detection is needed.
-
Preheat — Allow the sensor to warm up. For first-time use, power it in clean air for more than 48 hours for best accuracy. For normal use, wait at least 30 minutes before taking readings.
-
Calibrate (recommended) — In clean air, note the analog reading. Adjust the onboard potentiometer so the DO output switches just above this baseline.
-
Read data — Use analogRead() for concentration trends, or digitalRead() for threshold-based alarms. Note that the digital output is typically LOW when gas is detected (active-low logic).
-
Implement control logic — Trigger buzzers, valves, or notifications when the sensor value exceeds your defined threshold.
Pin Connections
Example Arduino Code (Basic Reading)
#define MQ8_AO A0
#define MQ8_DO 8
void setup() {
Serial.begin(9600);
pinMode(MQ8_DO, INPUT);
}
void loop() {
int analogValue = analogRead(MQ8_AO);
int digitalState = digitalRead(MQ8_DO);
Serial.print("Gas Level: ");
Serial.print(analogValue);
Serial.print(" | Alarm: ");
Serial.println(digitalState == LOW ? "TRIGGERED" : "Normal");
delay(1000);
}
Typical Applications
-
Household hydrogen leak alarms — Detect H₂ leaks from appliances and storage
-
Industrial hydrogen detectors — Monitor H₂ in battery rooms, laboratories, and chemical facilities
-
City gas (coal gas) detection — Monitor hydrogen-containing city gas
-
Portable gas detection instruments — Handheld H₂ detectors for field work
-
Educational STEM projects — Teaching analog sensing, gas detection, and calibration principles
Notes for Business Buyers
-
Preheat is essential — The 48-hour initial burn-in is critical for stable readings; factor this into production testing timelines
-
Not a precision instrument — MQ sensors provide relative trend data, not exact ppm readings for specific gases
-
Sensor lifespan — Specified for 10 years under proper conditions, but practical lifespan depends on exposure to contaminants
-
Suitable for bulk purchasing — Ideal for gas alarm manufacturers, educational kit suppliers, and industrial safety product developers
Q: What is the MQ-8 sensor used for?
It is a gas sensor for detecting hydrogen (H₂) and city gas in household hydrogen leak alarms, industrial flammable gas detectors, and portable gas detection instruments.
Q: What is the difference between the analog and digital outputs?
AO provides a continuous voltage that changes with gas concentration for trend monitoring. DO switches LOW when the concentration exceeds the onboard potentiometer threshold, ideal for simple alarms.
Q: Why does the sensor need a long preheat time?
The SnO₂ sensing element requires heating to reach stable operating temperature. The datasheet specifies a preheat time of more than 48 hours for reliable operation.
Q: Can I measure exact ppm with this sensor?
Not accurately without calibration. The MQ-8 is non-selective and provides relative trends. For quantitative measurement, you need calibration curves and cross-sensitivity compensation.
Q: What voltage does the module require?
It operates from 5V DC with a typical working current of less than 150mA.
Q: Does the sensor respond to other gases?
The MQ-8 has high sensitivity to hydrogen, with good anti-interference to alcohol, cooking fumes, LPG, and CO. However, it may still respond to other combustible gases.
Q: Is the sensor safe to touch?
No. The sensor surface becomes hot during operation due to the internal heater. Avoid touching it.
Q: Can I use this module with a Raspberry Pi?
Yes, but the Pi lacks a built-in ADC. Use an external ADC (e.g., MCP3008) to read the AO output.
Q: How long does the sensor last?
The sensor is specified for up to 10 years under proper conditions, but practical lifespan depends on exposure to contaminants.
Q: Can I purchase in bulk for a product development project?
Yes. This module is suitable for bulk purchasing by gas alarm manufacturers, educational kit suppliers, and industrial safety product developers.
