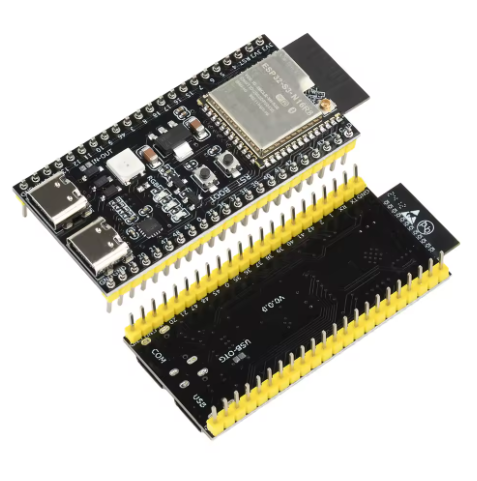

ESP32-S3-N16R8 development board 42pins with 2×Type-C interface (Welded)

Module

ESP32-S3-WROOM-1 (N16R8)
Processor

Dual-core 32-bit Xtensa LX7, up to 240MHz
Storage Configuration

16MB Flash / 8MB Octal PSRAM
Wireless Connectivity

Wi-Fi 802.11 b/g/n + Bluetooth 5 (LE/Mesh)
USB Interfaces

2× Type-C (UART programming port + native USB OTG port)
Pin Count

42-pin headers (breadboard compatible)
Operating Voltage

3.3V logic; 5V power input
Hardware Acceleration

AES, SHA, RSA, ECC, RNG, neural network instructions

The ESP32-S3-N16R8 Development Board is a high-performance platform built for IoT, edge computing, and AI applications, based on the ESP32-S3-WROOM-1 module. It features a dual-core Xtensa LX7 32-bit processor running at up to 240MHz, paired with a top-tier 16MB Flash and 8MB Octal PSRAM configuration, providing ample headroom for complex firmware, data-intensive applications, and lightweight edge AI tasks.

The most distinctive feature of this board is its dual Type-C interface design. One port provides a stable UART programming and serial debugging channel through an on-board USB-to-serial chip (CH340 or CP2102, depending on batch), making it the recommended interface for daily development and flashing. The other port connects directly to the ESP32-S3’s native USB (GPIO19/20), supporting USB OTG functionality — it can emulate HID devices (keyboard, mouse), MIDI devices, or mass storage devices. This separated design allows developers to flash firmware and debug device functions simultaneously without interference.

The 42-pin expansion layout is another core advantage of this model. Compared to the standard 38-pin DevKitC design, it exposes additional JTAG debugging pins and extra usable GPIOs, offering greater flexibility for complex multi-sensor integration and hardware debugging. An on-board WS2812 RGB LED (typically driven by GPIO48) can be used as a status indicator or for visual effects without any additional wiring.

For wireless connectivity, the ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), supporting Mesh networking and long-range coded PHY transmission — suitable for smart home gateways, industrial sensor nodes, and wearable devices. On the software side, the board fully supports Arduino IDE, ESP-IDF, and MicroPython development, with extensive community resources and libraries for rapid prototyping and productization.

Features

  • ESP32-S3-WROOM-1 module — dual-core Xtensa LX7 processor, up to 240MHz

  • Dual Type-C interfaces — one for UART programming/debugging, one for native USB OTG

  • N16R8 top-tier storage configuration — 16MB Flash + 8MB Octal PSRAM for large firmware and data buffering

  • 42-pin expansion layout — more JTAG and extra GPIOs than the standard 38-pin design, ideal for complex projects

  • On-board WS2812 RGB LED — programmable status indication without external components

  • USB OTG support — can emulate HID, MIDI, UVC, and other USB devices

  • AI acceleration instruction set — Xtensa LX7 includes vector instructions to accelerate neural network inference

  • Broad development environment support — compatible with Arduino IDE, ESP-IDF, and MicroPython

Technical Specifications

# Parameter Specification
1 Module ESP32-S3-WROOM-1 (N16R8)
2 Processor Dual-core 32-bit Xtensa LX7, up to 240MHz
3 Storage Configuration 16MB Flash / 8MB Octal PSRAM
4 Wireless Connectivity Wi-Fi 802.11 b/g/n + Bluetooth 5 (LE/Mesh)
5 USB Interfaces 2× Type-C (UART programming port + native USB OTG port)
6 Pin Count 42-pin headers (breadboard compatible)
7 Operating Voltage 3.3V logic; 5V power input
8 Hardware Acceleration AES, SHA, RSA, ECC, RNG, neural network instructions

Usage

Getting Started

  1. Install the driver — for first-time use of the UART port, install the corresponding USB-to-serial driver (CH340 or CP2102, depending on batch).

  2. Connect the board — use a Type-C cable to connect the board’s UART port to your computer (recommended for daily development, power, and communication).

  3. Choose your development environment — install Arduino IDE (with ESP32 board support added) or ESP-IDF.

  4. Configure board parameters — in your development environment, select “ESP32S3 Dev Module”, set PSRAM to “OPI PSRAM”, and set Flash Size to 16MB.

  5. Upload your code — write or open an example sketch, select the correct serial port, and click Upload.

  6. Enter download mode (if needed) — hold the BOOT button, press and release the RST button, then release the BOOT button.

Power Options

  • UART Type-C port power — recommended for daily development; provides both programming and serial monitor functions.

  • Native USB Type-C port power — used when testing USB device functionality.

  • 5V/GND header pins — external power input.

  • Note: Both Type-C ports can be connected simultaneously (on-board protection circuit), but for daily development only the UART port needs to be connected.

Typical Applications

  • IoT gateway development — Wi-Fi + BLE dual-mode connectivity with 16MB Flash for complex gateway firmware

  • Edge AI inference — 8MB PSRAM for image buffering and running speech recognition models

  • USB device emulation — use the native USB port to create custom HID, MIDI, or UVC devices

  • Smart home hub — multi-protocol bridging, local web server, sensor data aggregation

  • Industrial control systems — 42-pin expansion supports multiple GPIO, SPI, and I2C peripherals simultaneously

  • Education and training — suitable for university embedded systems courses and IoT practical projects

Notes for Business Buyers

  • The N16R8 configuration is the highest standard storage specification in the current ESP32-S3 lineup, suitable for long-term projects requiring large storage and memory.

  • The dual Type-C design reduces cable switching during debugging, improving development efficiency.

  • The 42-pin layout is compatible with ESP32-S3-DevKitC-1 pin definitions, easing migration from standard development boards.

  • Supports Arduino, ESP-IDF, and MicroPython, reducing team learning curve.

  • Suitable for bulk purchasing for product prototyping, laboratory setup, and training programs.

Q: What is the difference between this board and the standard ESP32-S3-DevKitC-1?

The main differences are: a 42-pin layout (with extra JTAG and additional pins compared to standard), dual Type-C interfaces (separated UART and native USB), and the top-tier N16R8 storage configuration.

Q: What does N16R8 stand for?

N16 indicates 16MB Flash storage, and R8 indicates 8MB PSRAM memory. This is the highest standard storage configuration available for the ESP32-S3-WROOM-1 module.

Q: Which of the two Type-C ports should I use?

For daily development and flashing, use the UART port (labeled COM or UART). When testing USB OTG functionality (such as emulating a keyboard or USB drive), use the native USB port (labeled USB).

Q: Do I need to make any special configuration in the development environment?

Yes. You must set PSRAM mode to “OPI PSRAM”, otherwise only part of the memory may be recognized or the 8MB PSRAM may not function properly. Flash Size should be set to 16MB.

Q: How do I enter firmware download mode?

Hold down the BOOT button, press and release the RST button once, then release the BOOT button. The board should now enter download mode and be recognized as a serial port by your computer.

Q: How do I use the on-board WS2812 RGB LED?

The RGB LED is typically connected to GPIO48 (please refer to the actual board silkscreen). You can drive it using the FastLED or Adafruit NeoPixel library for Arduino.

Q: Can this board be used for AI applications?

Yes. The ESP32-S3’s LX7 core includes vector instructions that accelerate neural network inference. Combined with 8MB PSRAM, it is suitable for running lightweight TensorFlow Lite models such as image classification or voice wake-word detection.

Q: Why can't GPIO35, 36, and 37 be used?

In the N16R8 configuration, GPIO35, 36, and 37 are used for internal communication with the Octal PSRAM and are occupied inside the module. External circuits should not connect to these pins.

Q: Which development environments are supported?

It supports Arduino IDE (with ESP32 board support installed), ESP-IDF (Espressif’s official framework), and MicroPython. It is also compatible with PlatformIO.

Q: Can I purchase in bulk for enterprise projects or teaching?

Yes. This development board is suitable for individual developers, enterprise prototyping, and bulk deployment. Educational institutions, R&D teams, and integrators are welcome to inquire about bulk purchasing.
