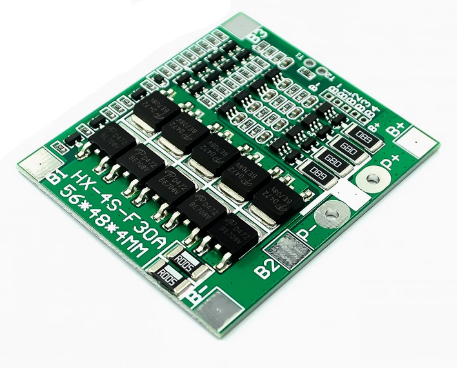

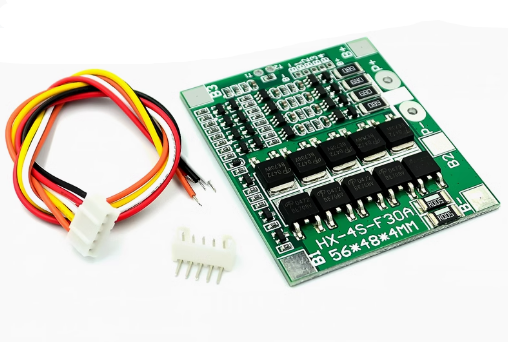

The 4S 14.8V 16-Cell 18650 Battery Protection Board is a high-power BMS (Battery Management System) designed to protect 4-series, 16-cell (4S16P) lithium-ion battery packs built from 18650 cells — from overcharge, over-discharge, and overcurrent conditions. With a 30A continuous discharge rating and balance function, this board is engineered for high-drain applications including power tools, e-bikes, energy storage systems, and portable power stations where reliable battery safety is essential.
At the heart of the board is a BMS protection circuit that continuously monitors the voltage of each cell group and the total pack current, disconnecting the load or charger if any parameter exceeds safe limits. This protects both the battery pack and your connected devices from damage, extending battery lifespan and ensuring safe operation.
The board provides three critical protection functions:
-
Overcharge protection — Disconnects the charger when any cell group voltage reaches approximately 4.25V to 4.3V per cell, preventing damage from excessive charging.
-
Over-discharge protection — Disconnects the load when any cell group voltage drops to approximately 2.5V to 3.0V per cell, preventing deep discharge that can permanently damage the battery.
-
Overcurrent protection — Disconnects the output when current exceeds 30A, protecting against short circuits and excessive loads.
The 4S configuration means the board manages four cell groups in series, balancing the voltage across all four groups to ensure they charge and discharge evenly. This cell balancing function is critical for maintaining pack health and maximizing lifespan. Without proper balancing, one cell group can become overcharged or over-discharged, leading to premature failure or safety hazards.
The 16-cell designation indicates the pack is configured as 4S16P — four cell groups in series, with 16 cells total (typically 4 cells in parallel per group). This configuration provides a nominal voltage of 14.8V and a full charge voltage of 16.8V, with high capacity and high current capability.
The 30A continuous rating makes this board suitable for high-power applications such as power tools, e-bikes, electric scooters, and energy storage systems. This is a significant step up from standard 4S boards that typically max out at 10A–20A, filling an important gap for high-current 4S applications.

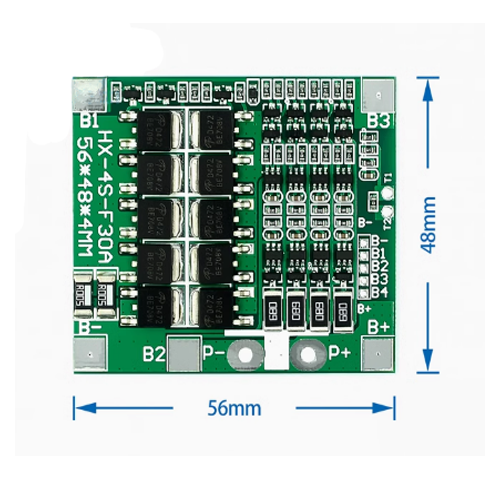

The board features a solder pad design that supports both direct soldering and spot welding. The exposed pads allow you to solder wires directly to the board, while also being compatible with spot-welded nickel strips for professional battery pack assembly. The board includes B+, B-, BM1, BM2, BM3 (mid-points), P+, and P- pads for battery and output connections.
Important Note: This BMS is designed for 4S (4-cell series) 14.8V/16.8V lithium battery packs with a maximum continuous current of 30A. For higher-current applications, a BMS with a higher current rating should be used. Always verify the voltage and current ratings match your application before installation. Ensure all wiring and connections are rated for the maximum current your application will draw.
Whether you are building a high-capacity 4S 18650 battery pack for a power tool, assembling an e-bike battery, or adding safety protection to an energy storage system, the 4S 14.8V 16-Cell 18650 Battery Protection Board provides a reliable, high-power solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.
Features
-
4S quad-cell protection — Manages four cell groups in series with cell balancing
-
30A continuous discharge — High-power capability for demanding applications
-
Balance function — Ensures even charge and discharge across all four cell groups
-
16-cell configuration — Designed for 4S16P 18650 battery packs
-
Comprehensive protection — Overcharge, over-discharge, and overcurrent protection
-
Solder pad design — Supports both direct soldering and spot welding
-
Compact PCB design — Sized for high-capacity battery packs
-
Wide application range — Power tools, e-bikes, energy storage, portable power stations
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Compatible Battery | 4S 14.8V lithium-ion (18650 cells) |
| 2 | Full Charge Voltage | 16.8V |
| 3 | Continuous Discharge Current | 30A |
| 4 | Configuration | 4S16P (4 series, 16 cells) |
| 5 | Overcharge Protection Voltage | ~4.25V – 4.3V per cell |
| 6 | Over-discharge Protection Voltage | ~2.5V – 3.0V per cell |
| 7 | Balance Function | Yes |
| 8 | Connection Type | Solder pads (spot welding supported) |
