4S 14.8V 12A Current limiting protection board

SKU: FA2193-11
Compatible Battery

4S 14.8V lithium-ion / lithium-polymer
Full Charge Voltage

16.8V
Continuous Discharge Current

12A
Overcharge Protection Voltage

~4.25V – 4.3V per cell
Over-discharge Protection Voltage

~2.5V – 3.0V per cell
Cell Balancing

Yes
Connection Type

Solder pads (spot welding supported)
Module Dimensions

Compact PCB for 4S packs

The 4S 14.8V 12A Current Limiting Protection Board is a high-performance BMS (Battery Management System) designed to protect 4-cell (4S) lithium-ion and lithium-polymer battery packs from overcharge, over-discharge, and overcurrent conditions. With a 12A current limiting rating, this board is engineered for moderate to high-drain applications where reliable battery safety is essential — from power banks and RC vehicles to portable power stations and energy storage systems.

At the heart of the board is a BMS protection circuit that continuously monitors the voltage of each cell and the total pack current, disconnecting the load or charger if any parameter exceeds safe limits. This protects both the battery pack and your connected devices from damage, extending battery lifespan and ensuring safe operation.

The board provides three critical protection functions:

  • Overcharge protection — Disconnects the charger when any cell voltage reaches approximately 4.25V to 4.3V, preventing damage from excessive charging.

  • Over-discharge protection — Disconnects the load when any cell voltage drops to approximately 2.5V to 3.0V, preventing deep discharge that can permanently damage the battery.

  • Overcurrent protection — Disconnects the output when current exceeds 12A, protecting against short circuits and excessive loads.

The 4S configuration means the board manages four cells in series, balancing the voltage across all four cells to ensure they charge and discharge evenly. This cell balancing function is critical for maintaining pack health and maximizing lifespan. Without proper balancing, one cell can become overcharged or over-discharged, leading to premature failure or safety hazards.

The 12A current limiting rating makes this board suitable for moderate to high-drain applications such as power banks, RC vehicles, portable speakers, LED lighting, and portable power stations. This is a step up from standard 4S boards that typically max out at 5A–10A, providing additional headroom for more demanding projects.

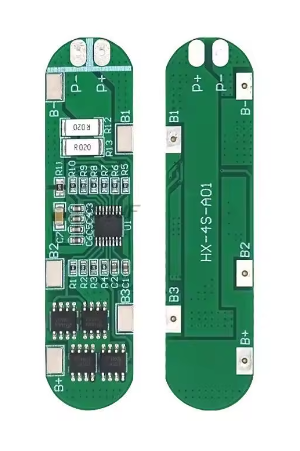

The board features a solder pad design that supports both direct soldering and spot welding. The exposed pads allow you to solder wires directly to the board, while also being compatible with spot-welded nickel strips for professional battery pack assembly. The board includes B+, B-, BM1, BM2, BM3 (mid-points), P+, and P- pads for battery and output connections.

The 4S configuration provides a nominal voltage of 14.8V and a full charge voltage of 16.8V, making it suitable for a wide range of applications that require higher voltage than 3S packs.

Important Note: This BMS is designed for 4S (4-cell) 14.8V/16.8V lithium battery packs with a maximum continuous current of 12A. For higher-current applications, a BMS with a higher current rating should be used. Always verify the voltage and current ratings match your application before installation. Ensure all wiring and connections are rated for the maximum current your application will draw.

Whether you are building a custom 4S battery pack for a portable power station, assembling an RC battery, or adding safety protection to an energy storage system, the 4S 14.8V 12A Current Limiting Protection Board provides a reliable solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.

Features

  • 4S quad-cell protection — Manages four cells in series with cell balancing

  • 12A current limiting — Moderate to high-current capability for demanding applications

  • Comprehensive protection — Overcharge, over-discharge, and overcurrent protection

  • Cell balancing function — Ensures even charge and discharge across all four cells

  • Solder pad design — Supports both direct soldering and spot welding

  • Compact PCB design — Sized for space-constrained battery packs

  • Simple connection — B+/B-/BM1/BM2/BM3 for battery, P+/P- for protected output

  • Wide application range — Power banks, RC vehicles, portable power stations, energy storage

Technical Specifications

# Parameter Specification
1 Compatible Battery 4S 14.8V lithium-ion / lithium-polymer
2 Full Charge Voltage 16.8V
3 Continuous Discharge Current 12A
4 Overcharge Protection Voltage ~4.25V – 4.3V per cell
5 Over-discharge Protection Voltage ~2.5V – 3.0V per cell
6 Cell Balancing Yes
7 Connection Type Solder pads (spot welding supported)
8 Module Dimensions Compact PCB for 4S packs

Usage

Getting Started

  1. Identify the battery pack terminals — Locate the positive (+), negative (-), and mid-point (BM1, BM2, BM3) terminals of your 4S battery pack.

  2. Connect the battery — Solder or spot weld the B+ pad to the pack positive terminal, B- pad to the pack negative terminal, BM1 to the first mid-point, BM2 to the second mid-point, and BM3 to the third mid-point.

  3. Connect the output — Solder your load or output wires to the P+ and P- pads on the protection board.

  4. Test the protection — Verify that the output voltage is present when the pack is within safe limits, and that the output disconnects when any cell voltage drops too low or rises too high.

  5. For high-current applications — Ensure all wiring and connections are rated for the maximum current your application will draw. Use appropriately sized wires and connectors.

Protection Thresholds (Typical)

Parameter Threshold Action
Overcharge ~4.25V – 4.3V per cell Disconnect charger
Over-discharge ~2.5V – 3.0V per cell Disconnect load
Overcurrent 12A Disconnect output

Connection Points

Pad Function
B+ Battery pack positive terminal
B- Battery pack negative terminal
BM1 First mid-point between cells
BM2 Second mid-point between cells
BM3 Third mid-point between cells
P+ Protected output positive
P- Protected output negative

Typical Applications

  • DIY power banks — Protect 4S battery packs in custom portable chargers

  • RC vehicles — Protect 4S batteries in remote-controlled models

  • Portable power stations — High-current protection for portable power

  • Portable speakers — Protect batteries in audio devices

  • Energy storage systems — Protect 4S battery packs in solar storage

  • Electric bicycles — Monitor and protect 4S battery packs

  • Educational projects — Teaching battery safety and protection principles

Notes for Business Buyers

  • 12A current capability — Fills the gap between standard 4S boards and high-current BMS systems.

  • 4S configuration — Provides 14.8V nominal for applications requiring higher voltage.

  • Cell balancing included — Ensures even charge and discharge for longer pack life.

  • Suitable for bulk purchasing — Ideal for battery pack assemblers, RC hobby shops, and educational institutions.

Q: What is the 4S 14.8V 12A Protection Board used for?

It is a safety module that protects 4-cell lithium battery packs from overcharge, over-discharge, and overcurrent conditions, with cell balancing for even charge and discharge.

Q: What batteries are compatible with this board?

It is designed for 4S (4-cell) 14.8V lithium-ion and lithium-polymer battery packs with a full charge voltage of 16.8V.

Q: What is the continuous discharge current?

The board is rated for 12A continuous discharge. Ensure all wiring and connections are rated for your application’s current draw.

Q: What are the protection thresholds?

Overcharge protection activates at approximately 4.25V–4.3V per cell. Over-discharge protection activates at approximately 2.5V–3.0V per cell. Overcurrent protection activates at 12A.

Q: What is the difference between B+/-, BM1/BM2/BM3, and P+/-?

B+ and B- connect to the pack positive and negative terminals. BM1, BM2, and BM3 connect to the mid-points between the four cells. P+ and P- provide the protected output to your load or charger.

Q: Does this board balance the cells?

Yes. The board includes cell balancing to ensure all four cells charge and discharge evenly, maximizing pack lifespan.

Q: Can I spot weld this board to the battery?

Yes. The board supports both direct soldering and spot welding. The exposed pads are compatible with spot-welded nickel strips.

Q: Can I use this board with a 3S or 5S battery pack?

No. This board is specifically designed for 4S (4-cell) 14.8V/16.8V battery packs. For other configurations, a different protection board or BMS is required.

Q: Does the board protect against short circuits?

Yes. The board includes overcurrent protection that disconnects the output if a short circuit or excessive current is detected.

Q: Can I purchase in bulk for a product development project?

Yes. This protection board is suitable for both individual users and business purchasing, including battery pack assemblers, RC hobby shops, and educational institutions.
