Long Description

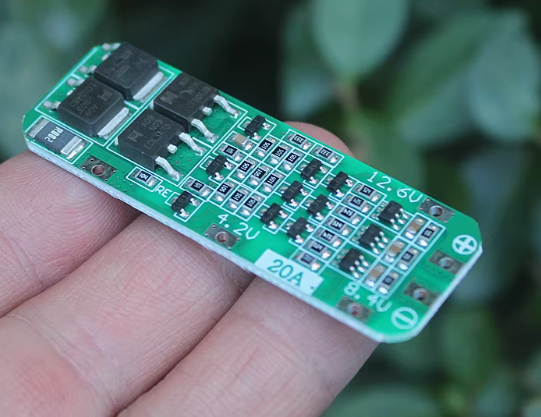

The 3S 12V 20A Lithium Battery Protection Board (BMS) is a high-performance safety module designed to protect 3-cell (3S) lithium-ion and lithium-polymer battery packs from overcharge, over-discharge, and overcurrent conditions. With a 20A continuous current rating, this BMS is engineered for moderate to high-drain applications where standard protection boards cannot handle the current requirements — from power tools and e-bikes to RC vehicles and energy storage systems.
At the heart of the board is a BMS (Battery Management System) protection circuit that continuously monitors the voltage of each cell and the total pack current, disconnecting the load or charger if any parameter exceeds safe limits. This protects both the battery pack and your connected devices from damage, extending battery lifespan and ensuring safe operation in demanding applications.
The board provides three critical protection functions:
-
Overcharge protection — Disconnects the charger when any cell voltage reaches approximately 4.25V to 4.3V, preventing damage from excessive charging.
-
Over-discharge protection — Disconnects the load when any cell voltage drops to approximately 2.5V to 3.0V, preventing deep discharge that can permanently damage the battery.
-
Overcurrent protection — Disconnects the output when current exceeds 20A, protecting against short circuits and excessive loads.
The 3S configuration means the board manages three cells in series, balancing the voltage across all three cells to ensure they charge and discharge evenly. This cell balancing function is critical for maintaining pack health and maximizing lifespan. Without proper balancing, one cell can become overcharged or over-discharged, leading to premature failure or safety hazards.
The 20A continuous rating makes this board suitable for moderate to high-drain applications such as power tools, e-bikes, electric scooters, RC vehicles, and portable power stations. This is a step up from standard 3S boards that typically max out at 5A–10A, providing additional headroom for more demanding projects.

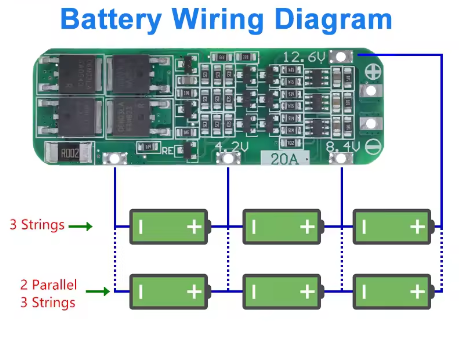

The board features a solder pad design that supports both direct soldering and spot welding. The exposed pads allow you to solder wires directly to the board, while also being compatible with spot-welded nickel strips for professional battery pack assembly. The board includes B+, B-, BM1, BM2 (mid-points), P+, and P- pads for battery and output connections.
The compatibility with 11.1V, 12V, and 12.6V systems makes this board suitable for a wide range of applications. Whether you are using nominal 11.1V packs, 12V nominal systems, or fully charged 12.6V packs, this BMS provides reliable protection.
Important Note: This BMS is designed for 3S (3-cell) 11.1V/12V/12.6V lithium battery packs with a maximum continuous current of 20A. For higher-current applications, a BMS with a higher current rating should be used. Always verify the voltage and current ratings match your application before installation. Ensure all wiring and connections are rated for the maximum current your application will draw.
Whether you are building a custom 3S battery pack for a power tool, assembling an e-bike battery, or adding safety protection to an energy storage system, the 3S 12V 20A Lithium Battery Protection Board provides a reliable, high-current solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.
Features
-
3S triple-cell protection — Manages three cells in series with cell balancing
-
20A continuous current — Moderate to high-current capability for demanding applications
-
Comprehensive protection — Overcharge, over-discharge, and overcurrent protection
-
Cell balancing function — Ensures even charge and discharge across all three cells
-
Wide voltage compatibility — Works with 11.1V, 12V, and 12.6V systems
-
Solder pad design — Supports both direct soldering and spot welding
-
Compact PCB design — Sized for space-constrained battery packs
-
Wide application range — Power tools, e-bikes, RC vehicles, energy storage
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Compatible Battery | 3S 11.1V/12V lithium-ion / lithium-polymer |
| 2 | Full Charge Voltage | 12.6V |
| 3 | Continuous Discharge Current | 20A |
| 4 | Overcharge Protection Voltage | ~4.25V – 4.3V per cell |
| 5 | Over-discharge Protection Voltage | ~2.5V – 3.0V per cell |
| 6 | Cell Balancing | Yes |
| 7 | Connection Type | Solder pads (spot welding supported) |
| 8 | Module Dimensions | Compact PCB for 3S packs |
