The 3S 12.6V 18650 Lithium Battery Protection Board is a high-performance safety module designed to protect 3-cell (3S) lithium-ion battery packs — specifically those using 18650 cells — from overcharge, over-discharge, and overcurrent conditions. With a 10A overcurrent protection rating, this board is engineered for moderate to high-drain applications where standard protection boards cannot handle the current requirements — from power banks and RC vehicles to portable speakers and energy storage systems.
At the heart of the board is a BMS (Battery Management System) protection circuit that continuously monitors the voltage of each cell and the total pack current, disconnecting the load or charger if any parameter exceeds safe limits. This protects both the battery pack and your connected devices from damage, extending battery lifespan and ensuring safe operation.
The board provides three critical protection functions:
-
Overcharge protection — Disconnects the charger when any cell voltage reaches approximately 4.25V to 4.3V, preventing damage from excessive charging.
-
Over-discharge protection — Disconnects the load when any cell voltage drops to approximately 2.5V to 3.0V, preventing deep discharge that can permanently damage the battery.
-
Overcurrent protection — Disconnects the output when current exceeds 10A, protecting against short circuits and excessive loads.
The 3S configuration means the board manages three cells in series, balancing the voltage across all three cells to ensure they charge and discharge evenly. This cell balancing function is critical for maintaining pack health and maximizing lifespan. Without proper balancing, one cell can become overcharged or over-discharged, leading to premature failure or safety hazards.
The 10A overcurrent rating makes this board suitable for moderate to high-drain applications such as power banks, RC vehicles, portable speakers, LED lighting, and portable power stations. This is a step up from standard 3S boards that typically max out at 2A–4A, providing additional headroom for more demanding projects.

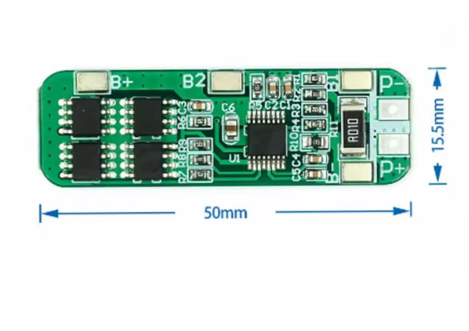

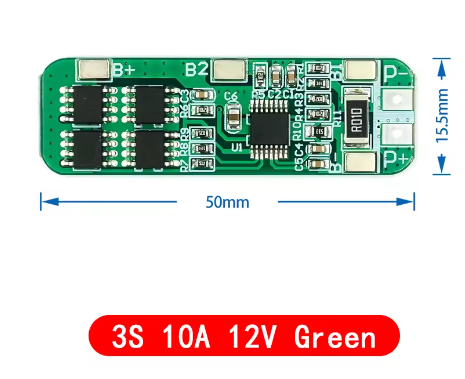

The board features a solder pad design that supports both direct soldering and spot welding. The exposed pads allow you to solder wires directly to the board, while also being compatible with spot-welded nickel strips for professional battery pack assembly. The board includes B+, B-, BM1, BM2 (mid-points), P+, and P- pads for battery and output connections.
The 18650 compatibility makes this board ideal for building custom battery packs using the most popular lithium-ion cell format. 18650 cells are widely available, reliable, and offer excellent energy density, making them the preferred choice for DIY power banks, portable speakers, RC vehicles, and e-bikes.
Important Note: This protection board is designed for 3S (3-cell) 12.6V lithium battery packs using 18650 cells, with a maximum continuous current of 10A. For higher-current applications, a BMS with a higher current rating should be used. Always verify the voltage and current ratings match your application before installation.
Whether you are building a custom 3S 18650 battery pack, assembling a portable power bank, or adding safety protection to an RC vehicle, the 3S 12.6V 18650 Lithium Battery Protection Board provides a reliable, high-current solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.
Features
-
3S triple-cell protection — Manages three 18650 cells in series with cell balancing
-
10A overcurrent protection — Moderate to high-current capability for demanding applications
-
Comprehensive protection — Overcharge, over-discharge, and overcurrent protection
-
Cell balancing function — Ensures even charge and discharge across all three cells
-
18650 compatibility — Designed for the most popular lithium-ion cell format
-
Solder pad design — Supports both direct soldering and spot welding
-
Compact PCB design — Sized for space-constrained battery packs
-
Wide application range — Power banks, RC vehicles, portable speakers, energy storage
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Compatible Battery | 3S 11.1V lithium-ion (18650 cells) |
| 2 | Full Charge Voltage | 12.6V |
| 3 | Overcurrent Protection | 10A |
| 4 | Continuous Discharge Current | Up to 10A (variant dependent) |
| 5 | Overcharge Protection Voltage | ~4.25V – 4.3V per cell |
| 6 | Over-discharge Protection Voltage | ~2.5V – 3.0V per cell |
| 7 | Cell Balancing | Yes |
| 8 | Connection Type | Solder pads (spot welding supported) |
