The 3S 11.1V 50A Lithium Battery Protection Board is a high-power BMS (Battery Management System) designed specifically for 3-cell (3S) lithium-ion battery packs used in electric tools and high-power applications within 500W. With a 50A continuous current rating, this board is engineered for the most demanding cordless power tools, including drills, saws, grinders, and other high-drain equipment where standard protection boards simply cannot handle the current requirements.
At the heart of the board is a BMS protection circuit that continuously monitors the voltage of each cell and the total pack current, disconnecting the load or charger if any parameter exceeds safe limits. This protects both the battery pack and your connected devices from damage, extending battery lifespan and ensuring safe operation in high-power applications.
The board provides three critical protection functions:
-
Overcharge protection — Disconnects the charger when any cell voltage reaches approximately 4.25V to 4.3V, preventing damage from excessive charging.
-
Over-discharge protection — Disconnects the load when any cell voltage drops to approximately 2.5V to 3.0V, preventing deep discharge that can permanently damage the battery.
-
Overcurrent protection — Disconnects the output when current exceeds 50A, protecting against short circuits and excessive loads.
The 50A continuous rating makes this board suitable for high-power electric tools within 500W, including:
-
Cordless drills and drivers
-
Circular saws and reciprocating saws
-
Angle grinders and polishers
-
Electric wrenches and impact drivers
-
Rotary hammers and demolition tools
-
Garden tools (trimmers, blowers, chainsaws)
This is a significant step up from standard 3S boards that typically max out at 10A–20A, filling an important gap for high-current 3S applications in the power tool segment.
The balance function is a key feature of this BMS. During charging, the board monitors the voltage of each cell and bleeds off excess charge from cells that reach full voltage before others. This ensures all cells in the pack reach the same voltage, maximizing pack capacity and lifespan. Without proper balancing, one cell can become overcharged or over-discharged, leading to premature failure or safety hazards.

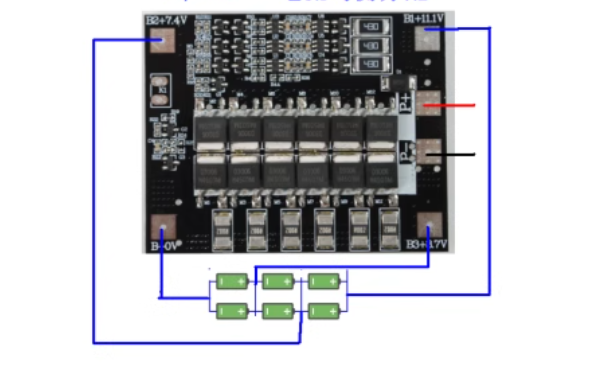

The board features a solder pad design that supports both direct soldering and spot welding. The exposed pads allow you to solder wires directly to the board, while also being compatible with spot-welded nickel strips for professional battery pack assembly. The board includes B+, B-, BM1, BM2 (mid-points), P+, and P- pads for battery and output connections.
Important Note: This BMS is designed for 3S (3-cell) 11.1V/12.6V lithium battery packs with a maximum continuous current of 50A, suitable for electric tools within 500W. For higher-power applications, a BMS with a higher current rating should be used. Always verify the voltage and current ratings match your application before installation. Ensure all wiring and connections are rated for the maximum current your application will draw.
Whether you are rebuilding a power tool battery pack, assembling a custom 3S pack for high-power equipment, or adding safety protection to an existing battery, the 3S 11.1V 50A Lithium Battery Protection Board provides a reliable, high-power solution. It is suitable for individual makers, repair technicians, and businesses purchasing in bulk for product development or educational programs.
Features
-
3S triple-cell protection — Manages three cells in series
-
50A continuous current — High-power capability for electric tools up to 500W
-
Dedicated for power tools — Optimized for drills, saws, grinders, and other high-drain equipment
-
Balance function — Ensures even charge and discharge across all three cells
-
Comprehensive protection — Overcharge, over-discharge, and overcurrent protection
-
Solder pad design — Supports both direct soldering and spot welding
-
Compact PCB design — Sized for power tool battery packs
-
Wide application range — Power tools, e-bikes, energy storage, high-power DIY
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Compatible Battery | 3S 11.1V lithium-ion |
| 2 | Full Charge Voltage | 12.6V |
| 3 | Continuous Discharge Current | 50A |
| 4 | Maximum Power | 500W (electric tools) |
| 5 | Overcharge Protection Voltage | ~4.25V – 4.3V per cell |
| 6 | Over-discharge Protection Voltage | ~2.5V – 3.0V per cell |
| 7 | Balance Function | Yes |
| 8 | Connection Type | Solder pads (spot welding supported) |
