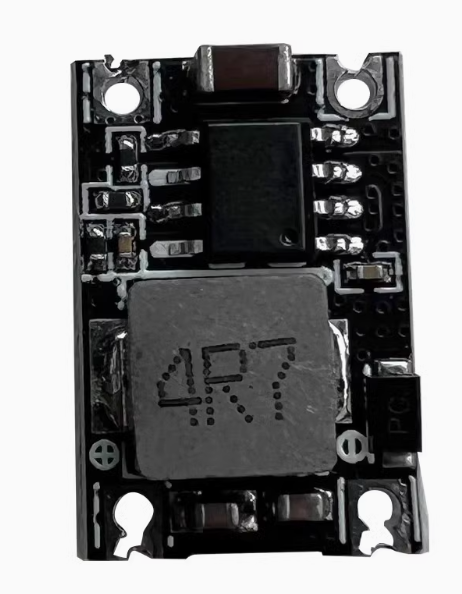

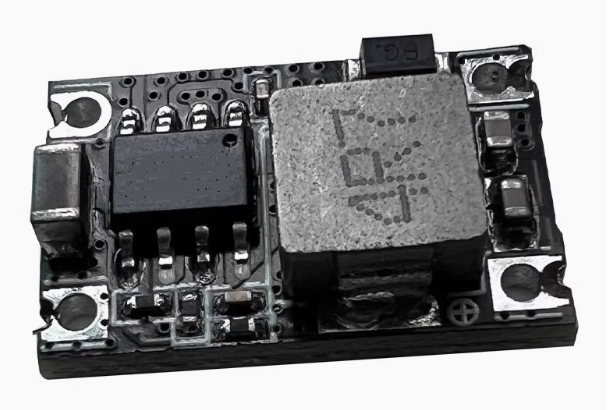

The 3A Mini DC-DC Buck Converter Module is a compact, high-efficiency step-down regulator designed to provide a fixed 12V output from a higher DC input voltage. With a 3A maximum output current, it is an ideal solution for powering 12V devices, LED strips, relays, fans, and circuits from higher-voltage input sources including 24V industrial supplies, 36V battery packs, and higher-voltage DC adapters.
At the heart of the module is a high-efficiency synchronous buck converter that steps down input voltages from 14V to 40V DC to a regulated 12V output. The conversion efficiency reaches up to 92%, minimizing power loss and heat generation compared to linear regulators. The 3A continuous output current provides ample power for demanding 12V loads, including LED lighting, motors, relays, and communication equipment.
The module is designed for 12V fixed output operation, eliminating the need for external adjustment and simplifying integration. This makes it particularly well-suited for powering 12V devices where a stable, reliable 12V rail is essential — especially in automotive, industrial, and LED lighting applications.

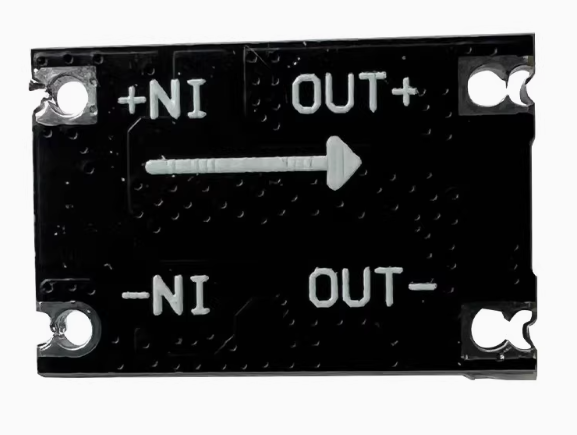

The mini form factor is a key advantage of this module. Its compact size allows easy integration into space-constrained projects, equipment enclosures, and portable devices. The module features screw terminals or pin headers for secure input and output connections, with clearly labeled terminals for easy wiring. LED indicators provide visual feedback for power status.
The module includes built-in protection circuits including overcurrent protection, thermal shutdown, and short-circuit protection, ensuring safe and reliable operation even under fault conditions. The wide input voltage range of 14V to 40V makes it compatible with a broad range of power sources, from 24V industrial systems to 36V battery packs.
The module is widely used in LED lighting systems, automotive electronics, industrial control, communication equipment, security systems, robotics, and any application requiring a stable 12V supply from a higher input voltage.
Important Note: The module requires the input voltage to be higher than the output voltage (12V) by at least 2V for proper regulation. For example, a 24V input is ideal, but a 13V input would provide insufficient headroom. Always verify the input voltage and current ratings match your application.
Whether you are powering a 12V LED strip from a 24V supply, adding a 12V rail to a 36V system, or building a custom automotive device, the 3A Mini DC-DC Buck Converter Module provides a reliable, efficient solution. It is suitable for individual makers, engineers, and businesses purchasing in bulk for product development or industrial applications.
Features
-
Fixed 12V output — No adjustment required, simplifying integration
-
3A maximum output current — Ample power for 12V devices and systems
-
Wide input voltage range — 14V to 40V DC
-
High efficiency — Up to 92% conversion efficiency
-
Synchronous buck converter — Low heat generation, no external heat sink required
-
Mini compact design — Space-saving form factor for constrained projects
-
Built-in protection — Overcurrent, thermal shutdown, and short-circuit protection
-
Wide application range — LED lighting, automotive, industrial control, security systems
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Module Type | Step-down (buck) converter |
| 2 | Output Voltage | 12V DC (fixed) |
| 3 | Maximum Output Current | 3A |
| 4 | Input Voltage Range | 14V – 40V DC |
| 5 | Conversion Efficiency | Up to 92% |
| 6 | Output Voltage Accuracy | ±1% (typical) |
| 7 | Protection | Overcurrent, thermal shutdown, short-circuit |
| 8 | Module Dimensions | Mini compact PCB with mounting holes |
