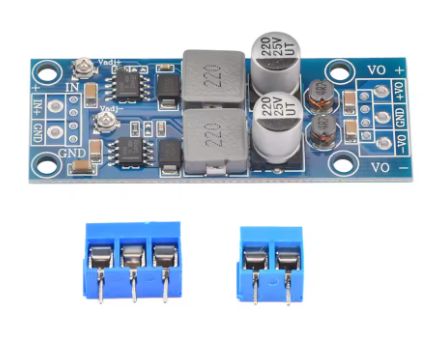

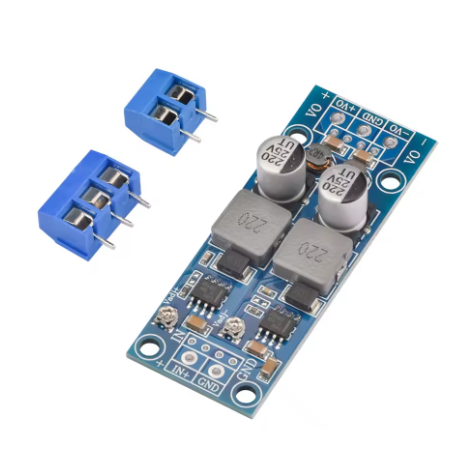

The 3A High-Power Buck Converter with Dual Output is a versatile DC-DC power module designed to generate positive and negative output voltages from a single positive input supply. It is capable of producing ±5V or ±12V (adjustable) outputs with a 3A maximum current rating, making it an ideal solution for powering operational amplifiers (op-amps), audio circuits, dual-supply analog systems, and industrial control equipment.
At the heart of the module is a high-efficiency buck converter circuit combined with a voltage inversion stage that generates the negative rail. This allows the module to output a positive voltage (+V) and a matching negative voltage (-V) simultaneously, from a single positive DC input. This is particularly useful for circuits that require dual-polarity supplies, such as:
-
Operational amplifier circuits (op-amps)
-
Audio amplifiers and preamplifiers
-
Analog signal processing circuits
-
Sensor interfaces requiring bipolar supplies
-
Industrial control systems
-
Data acquisition systems
The module accepts a wide input voltage range (typically 6V to 30V DC depending on the specific variant), making it compatible with 12V and 24V systems as well as battery-powered setups. The output voltage is adjustable via onboard potentiometers, allowing you to set the positive and negative rails to ±5V, ±12V, or other required voltages within the module’s range.
The 3A maximum output current provides ample power for demanding analog and digital circuits. The module uses high-efficiency switching regulation (up to 90% efficiency), minimizing power loss and heat generation compared to linear regulators. This makes it suitable for battery-powered and portable applications where efficiency is critical.
The module features screw terminals for secure input and output connections, and the compact PCB design with mounting holes allows easy integration into equipment enclosures, project boxes, and control panels. The module includes built-in protection circuits including overcurrent protection and thermal shutdown, ensuring safe and reliable operation.
The positive to negative voltage conversion is a key feature. Unlike standard buck converters that only produce a positive output, this module generates both positive and negative rails from a single input — eliminating the need for separate power supplies or complex transformer-based circuits. This simplifies system design and reduces component count.
The module is widely used in audio equipment, operational amplifier circuits, industrial control, test and measurement instruments, analog signal processing, and any application requiring dual-polarity power supplies from a single input source.
Important Note: The input voltage must be higher than the absolute value of the desired output voltage. Always verify the voltage and current ratings match your application before installation. Ensure adequate ventilation for high-power operation.
Whether you are building an audio amplifier, designing an analog circuit, or adding dual-supply capability to a project, the 3A High-Power Buck Converter with Dual Output provides a reliable, efficient solution. It is suitable for individual makers, engineers, and businesses purchasing in bulk for product development or industrial applications.
Features
-
Dual output — Generates positive and negative voltages simultaneously
-
±5V/±12V adjustable — Configurable via onboard potentiometers
-
3A maximum output current — Ample power for demanding circuits
-
Positive to negative conversion — Creates a negative rail from a positive input
-
High efficiency — Up to 90% switching regulation
-
Wide input voltage range — Compatible with 6V–30V DC systems
-
Built-in protection — Overcurrent protection and thermal shutdown
-
Screw terminals — Secure input and output connections
-

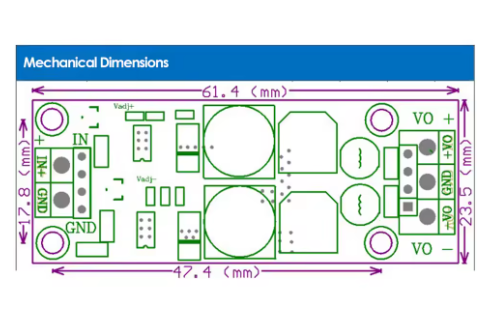

Compact PCB design — With mounting holes for easy installation
-
Wide application range — Audio, op-amp circuits, industrial control, instrumentation
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Module Type | Dual-output buck converter |
| 2 | Output Voltage | ±5V / ±12V (adjustable) |
| 3 | Maximum Output Current | 3A |
| 4 | Input Voltage Range | 6V – 30V DC (variant dependent) |
| 5 | Conversion Efficiency | Up to 90% |
| 6 | Output Polarity | Positive and negative rails |
| 7 | Protection | Overcurrent, thermal shutdown |
| 8 | Terminal Type | Screw terminals |
