315Mhz AC85-220V 10A 1 Ch Channel Wirelessratdio Frequenxcyremote Control Board Transmitter Receiver Relay Switch Module with Case (Choose either 5V/12V/24V/220V)

SKU: FA2081-0-4
Operating Frequency

315MHz
Receiver Input Voltage

5V / 12V / 24V / AC 85-220V (selectable)
Relay Rated Load

10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
Receiving Sensitivity

-107dBm
Working Modes

Jog / Toggle / Latch (switchable)
Remote Storage Capacity

Up to 32 remotes
Remote Distance

Approx. 100m open area; 20–50m indoors
Receiver Dimensions

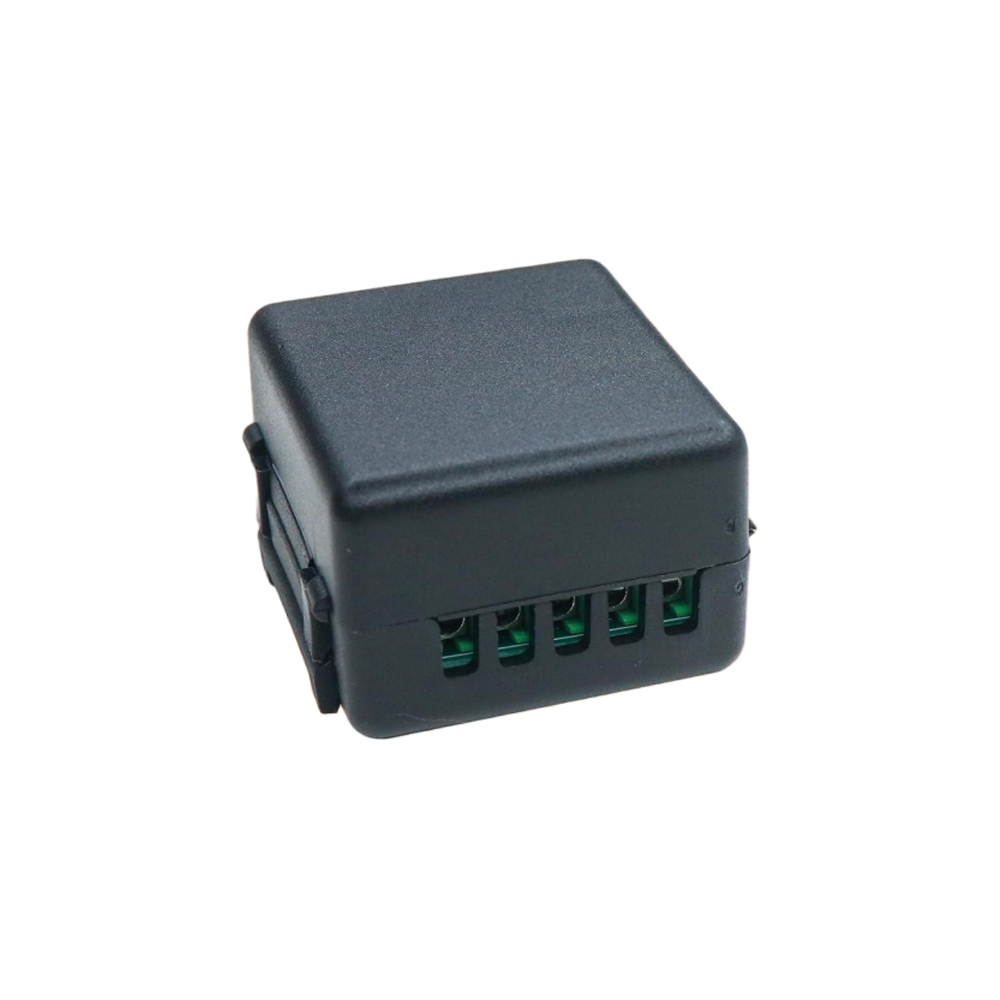

Approx. 5.4cm × 3.1cm × 1.4cm

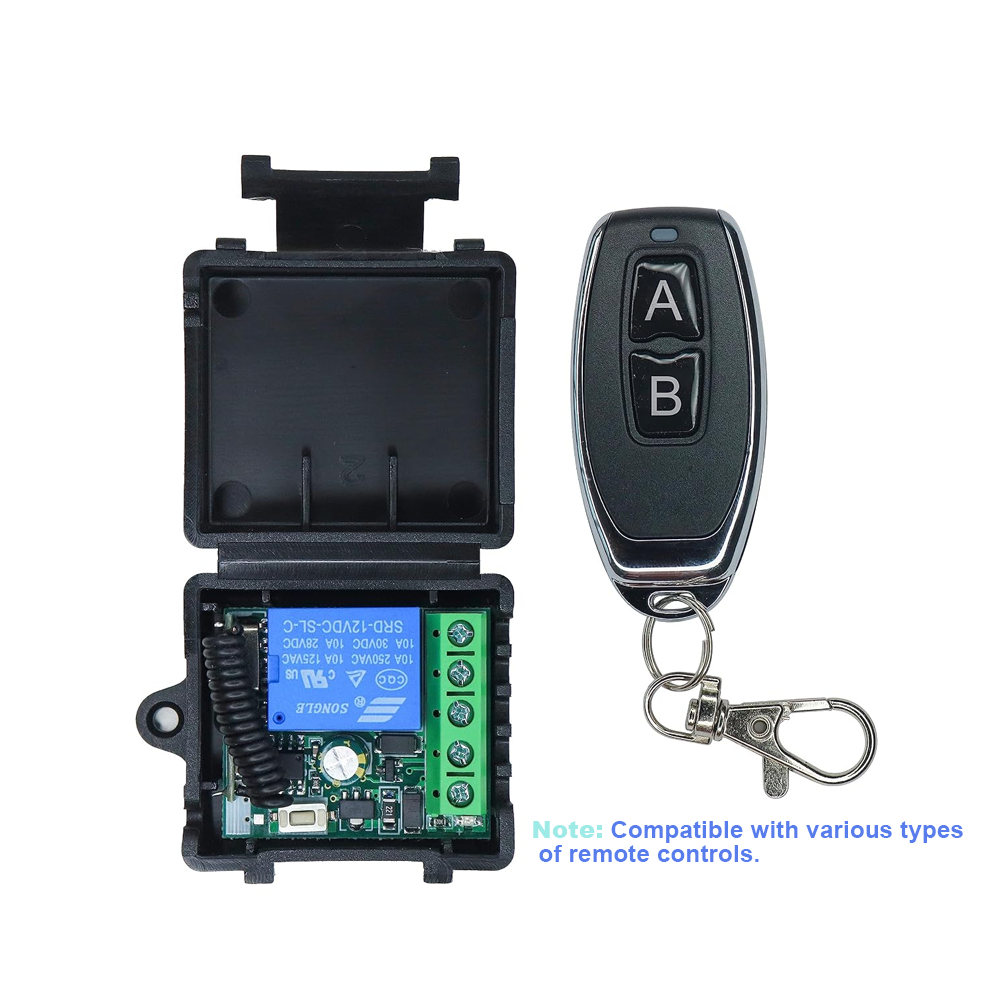

The 315MHz Single-Channel Wireless RF Remote Control Switch Module is a complete, ready-to-use remote control solution designed for simple, reliable wireless switching of lights, motors, pumps, and other electrical equipment. It consists of a transmitter (remote control) and a receiver (with relay output) , and is available in 5V, 12V, 24V, or 220V power input versions to suit different installation environments. The receiver comes with a protective case for safe, organized installation.

The receiver uses a superheterodyne receiving architecture, providing excellent anti-interference capability and stable signal reception. For the AC 220V version, the receiver connects directly to mains power. For 5V/12V/24V versions, the receiver operates from low-voltage DC supplies, making them suitable for battery-powered, automotive, and industrial control applications.

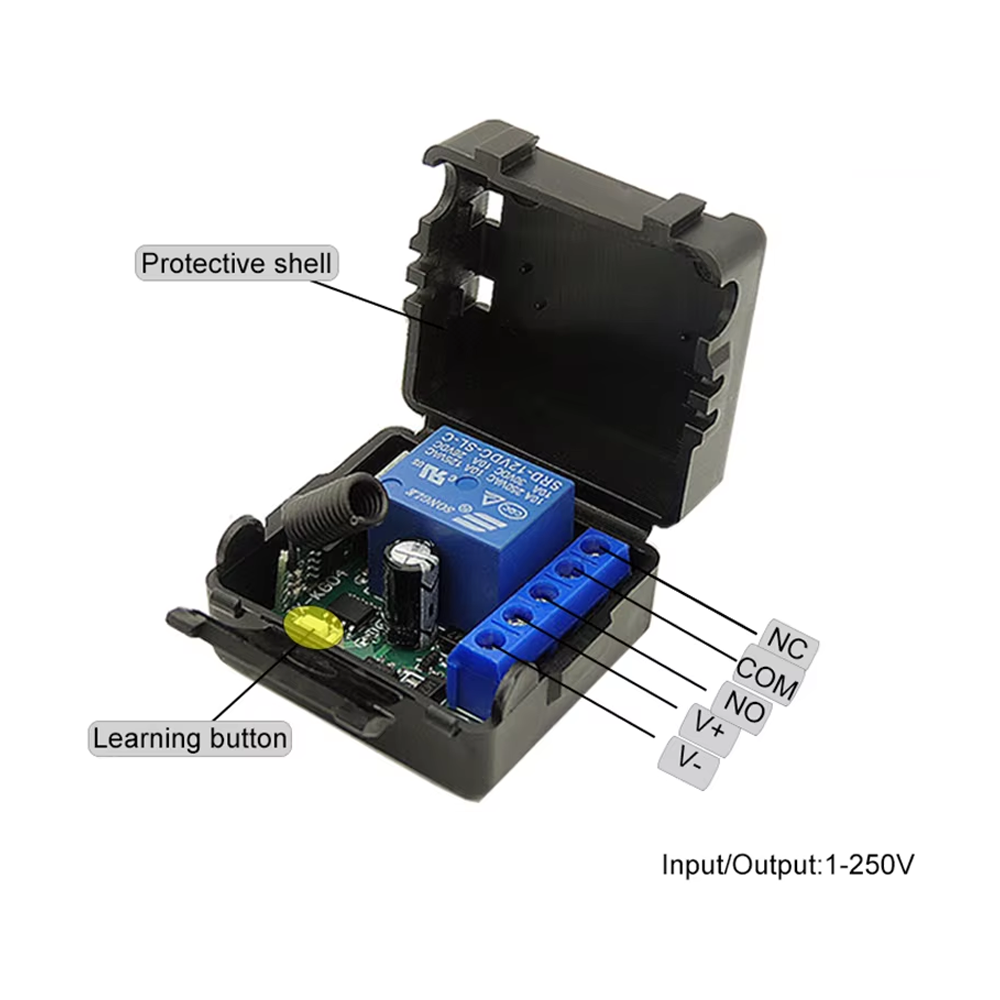

The built-in 10A high-power relay can handle loads up to 250VAC / 30VDC, sufficient to drive most home appliances and small-to-medium motor equipment. The relay provides Normally Open (NO) , Normally Closed (NC) , and Common (COM) contacts for flexible wiring configurations.

The module uses intelligent learning code technology and supports common fixed-code and EV1527 learning-code remotes. With the onboard learning button, you can pair a remote in seconds without any professional tools. The receiver can store up to 32 different remote controls, convenient for multiple family members or managers.

The module offers three switchable working modes, selected by the number of short presses on the learning button:

  • Jog mode — relay closes while the remote button is held, opens when released

  • Toggle mode — press once to turn on, press again to turn off

  • Latch mode — requires two remote buttons, one for on and one for off

The included transmitter (remote control) operates at 315MHz and uses a 23A 12V battery (included in some versions). Effective remote distance reaches up to 100 meters in open areas and approximately 20–50 meters indoors through walls. Signals can penetrate walls, floors, and doors, letting you control devices reliably from anywhere in your home.

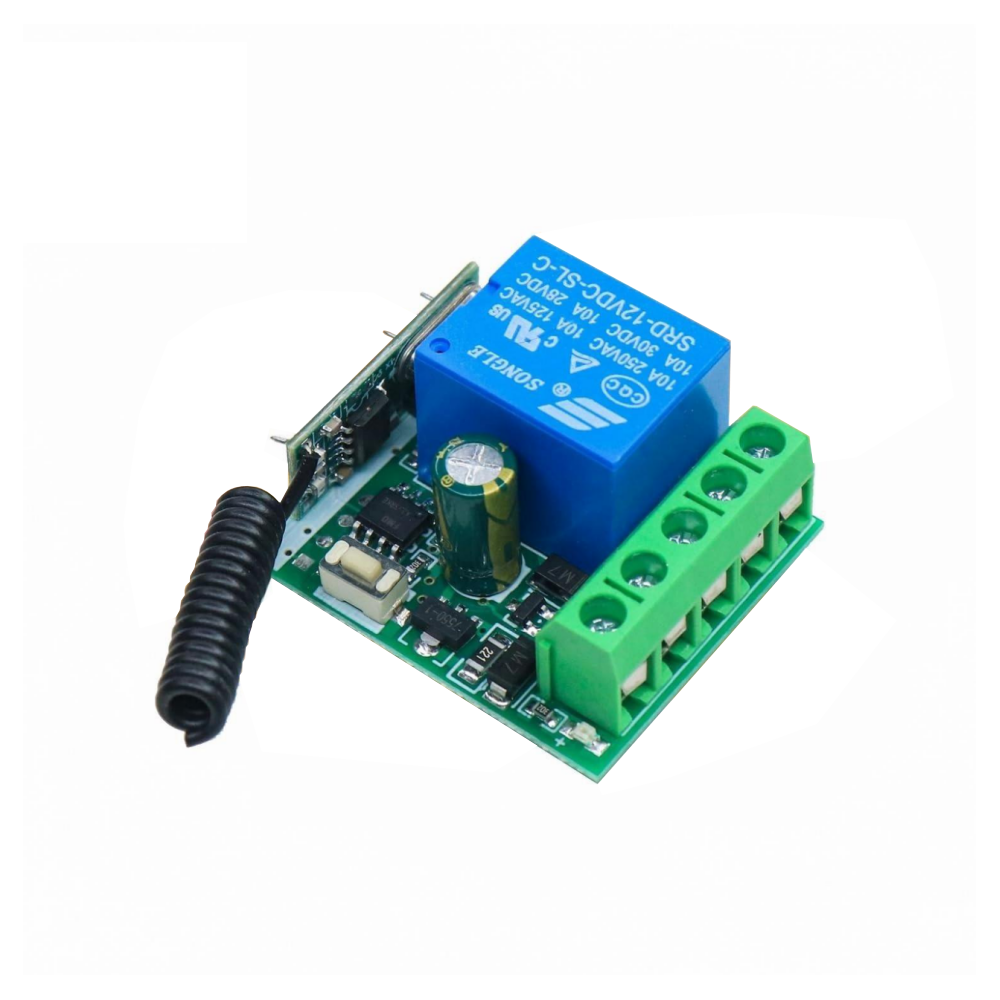

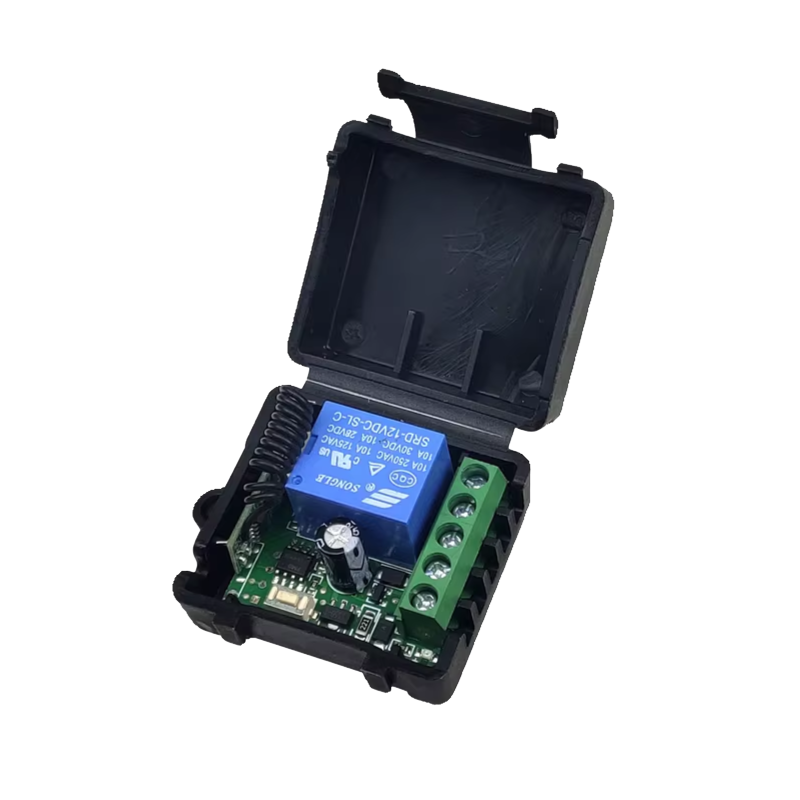

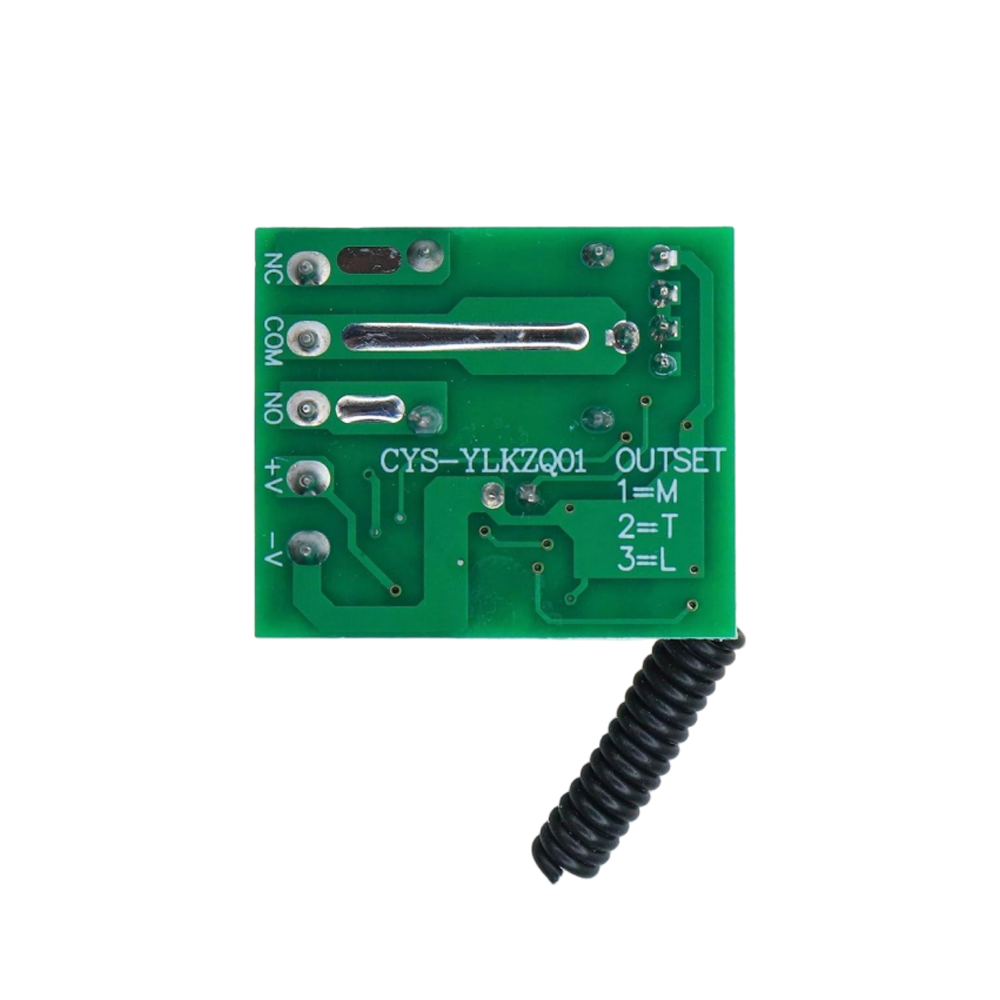

The receiver features a compact PCB design with a plastic enclosure, making it easy to install in distribution boxes, light fixtures, or equipment interiors. The fixed screw terminals accept bare wires directly and tighten securely for simple installation.

Important Note: For the AC 220V version, ensure proper safety precautions when working with mains voltage. For 5V/12V/24V versions, ensure the power supply is within the specified range. The relay is rated for 10A. For inductive loads like motors, keep load current below 60–70% of the rated value.

Whether you are a homeowner automating lighting, an installer building access control systems, or a business purchasing in bulk for smart home or industrial projects, the 315MHz RF Remote Control Switch Module offers a reliable, cost-effective solution. It is suitable for individual users, students, and businesses purchasing in bulk for product development or educational programs.

Features

  • Available in 5V, 12V, 24V, or 220V versions — Choose the voltage that suits your installation

  • Superheterodyne receiving architecture — High sensitivity and strong anti-interference capability

  • Intelligent learning code — Supports fixed-code and EV1527 remotes; stores up to 32 remote codes

  • Three switchable working modes — Jog, Toggle, and Latch, selected by learning button presses

  • 10A high-power relay output — Handles 250VAC / 125VAC / 30VDC / 28VDC loads

  • Long-range remote control — Up to 100 meters open area; 20–50 meters indoors

  • Protective case included — Protects the circuit board and simplifies installation

  • Fixed screw terminals — Secure screw-clamp wiring for reliable connections

Technical Specifications

# Parameter Specification
1 Operating Frequency 315MHz
2 Receiver Input Voltage 5V / 12V / 24V / AC 85-220V (selectable)
3 Relay Rated Load 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
4 Receiving Sensitivity -107dBm
5 Working Modes Jog / Toggle / Latch (switchable)
6 Remote Storage Capacity Up to 32 remotes
7 Remote Distance Approx. 100m open area; 20–50m indoors
8 Receiver Dimensions Approx. 5.4cm × 3.1cm × 1.4cm

Usage

First-Time Setup and Pairing

  1. Select the correct voltage version — Choose the 5V, 12V, 24V, or 220V version that matches your power source.

  2. Clear factory codes (recommended for first use) — After powering the receiver, long-press the learning button for about 8 seconds until the LED indicator lights up, indicating all stored remote codes have been cleared.

  3. Enter learning state — Short-press the learning button once. The LED indicator turns off, indicating the receiver is in learning mode.

  4. Select working mode — In learning state, short-press the learning button 1 time for Jog mode, 2 times for Toggle mode, or 3 times for Latch mode. The number of LED flashes corresponds to the selected mode.

  5. Pair the remote — In learning state, press any button on the remote. The LED indicator flashes 3–5 times and then turns off, indicating successful learning.

  6. Latch mode pairing — In Latch mode, two buttons must be learned: first press the remote’s “A” button (automatically assigned as “On”), then press the “B” button (automatically assigned as “Off”).

Working Mode Descriptions

Mode Operation Remote Buttons Required
Jog Relay closes while button is held; opens when released 1 button
Toggle Press once to turn on, press again to turn off 1 button
Latch Press A to turn on, press B to turn off 2 buttons

Wiring Instructions

  1. Receiver power — Connect the appropriate voltage (5V/12V/24V DC or AC 85-220V) to the receiver’s power input terminals.

  2. Load wiring — Connect the device to be controlled (light, motor, etc.) to the relay’s normally-open (NO) or normally-closed (NC) contacts.

  3. Power-on test — After powering on, the LED indicator should light up. Press the remote button; the relay should click and switch state.

Typical Applications

  • Home lighting control — Remote switching of lamps, ceiling lights, and LED strips

  • Electric doors and access control — Remote control of electric doors, rolling shutters, and garage doors

  • Motor and pump control — Remote start/stop of small motors, pumps, and fans

  • Security systems — Arm/disarm integration with alarm systems remotely

  • Industrial equipment control — Simple remote switching of commercial and industrial electrical equipment

  • Automotive and marine — 12V/24V remote switching for vehicle and boat accessories

Notes for Business Buyers

  • Multiple voltage options — Stock 5V, 12V, 24V, and 220V versions to serve different markets and applications.

  • Three working modes — One module adapts to multiple control requirements, reducing inventory SKUs.

  • Learning code — Simple pairing without professional tools, lowering deployment and maintenance costs.

  • Suitable for bulk purchasing — Ideal for smart home, security engineering, teaching experiments, and product development.

Q: What is the 315MHz RF Remote Control Switch Module used for?

It is a complete wireless remote control solution for switching lights, motors, pumps, and other equipment. It consists of a transmitter (remote) and a receiver with a relay output.

Q: How do I choose the correct voltage version?

Choose based on your power source:

  • 5V/12V/24V for low-voltage DC systems, battery-powered applications, and automotive use

  • AC 85-220V for direct mains power connection

Q: How do I pair the remote with the receiver?

Short-press the learning button once (LED turns off), then press any button on the remote. The LED flashes 3–5 times and then turns off, indicating successful pairing.

Q: What is the difference between the three working modes?

Jog: relay closes while the remote button is held, opens when released. Toggle: press once to turn on, press again to turn off. Latch: requires two remote buttons, one for on and one for off.

Q: How many remotes can the receiver store?

It can store up to 32 remote controls, convenient for multiple users.

Q: What is the remote control distance?

Approximately 100 meters in open areas, and about 20–50 meters indoors through walls.

Q: How do I clear all learned remote codes?

Long-press the learning button for about 8 seconds until the LED indicator lights up, then release. All codes are cleared.

Q: What is the difference between the receiver's operating voltage and the load voltage?

The receiver requires the selected input voltage (5V/12V/24V/220V) for power. The relay’s load contacts can independently control AC or DC devices (up to 10A), regardless of the receiver’s supply voltage.

Q: How much power can this module control?

The relay is rated for 10A. For AC resistive loads, it can control up to approximately 2200W (such as lighting). For inductive loads like motors, keep load current below 60–70% of the rated value.

Q: Can I purchase in bulk for engineering projects?

Yes. This module is suitable for both individual users and business purchasing, including smart home installation, security engineering, automotive applications, teaching experiments, and product development.
