The 25A 21V 5S BMS 18650 Lithium-Ion Battery Protection Circuit Charging Board Module is a high-performance BMS (Battery Management System) designed to protect 5-cell (5S) lithium-ion battery packs — specifically those using 18650 cells — from overcharge, over-discharge, and overcurrent conditions. With a 25A continuous discharge rating and balance function, this board is engineered for high-drain applications including power tools, e-bikes, electric scooters, and energy storage systems where standard protection boards cannot handle the current requirements.
At the heart of the board is a BMS protection circuit that continuously monitors the voltage of each cell and the total pack current, disconnecting the load or charger if any parameter exceeds safe limits. This protects both the battery pack and your connected devices from damage, extending battery lifespan and ensuring safe operation in demanding applications.
The board provides three critical protection functions:
-
Overcharge protection — Disconnects the charger when any cell voltage reaches approximately 4.25V to 4.3V, preventing damage from excessive charging.
-
Over-discharge protection — Disconnects the load when any cell voltage drops to approximately 2.5V to 3.0V, preventing deep discharge that can permanently damage the battery.
-
Overcurrent protection — Disconnects the output when current exceeds 25A, protecting against short circuits and excessive loads.
The 5S configuration means the board manages five cells in series, balancing the voltage across all five cells to ensure they charge and discharge evenly. This cell balancing function is critical for maintaining pack health and maximizing lifespan. Without proper balancing, one cell can become overcharged or over-discharged, leading to premature failure or safety hazards.
The 25A continuous rating makes this board suitable for high-drain applications such as power tools, e-bikes, electric scooters, RC vehicles, and portable power stations. This is a significant step up from standard 5S boards that typically max out at 10A–20A, filling an important gap for high-current 5S applications.

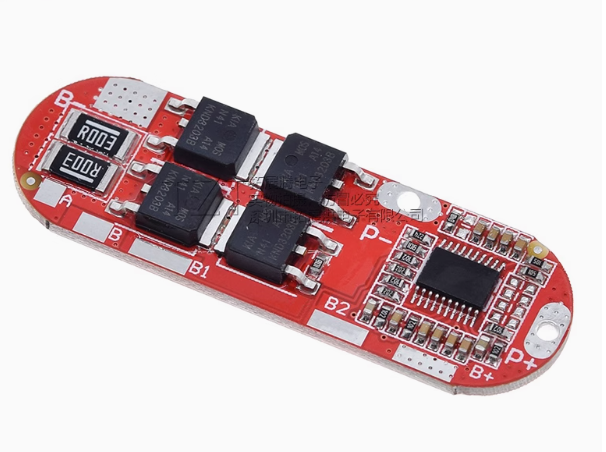

The board features a solder pad design that supports both direct soldering and spot welding. The exposed pads allow you to solder wires directly to the board, while also being compatible with spot-welded nickel strips for professional battery pack assembly. The board includes B+, B-, BM1, BM2, BM3, BM4 (mid-points), P+, and P- pads for battery and output connections.
The 18650 compatibility makes this board ideal for building custom battery packs using the most popular lithium-ion cell format. 18650 cells are widely available, reliable, and offer excellent energy density, making them the preferred choice for power tools, e-bikes, and DIY projects.
Important Note: This BMS is designed for 5S (5-cell) 18.5V/21V lithium battery packs using 18650 cells, with a maximum continuous current of 25A. For higher-current applications, a BMS with a higher current rating should be used. Always verify the voltage and current ratings match your application before installation. Ensure all wiring and connections are rated for the maximum current your application will draw.
Whether you are building a high-current 5S 18650 battery pack for a power tool, assembling an e-bike battery, or adding safety protection to an energy storage system, the 25A 21V 5S BMS 18650 Lithium-Ion Battery Protection Circuit Charging Board Module provides a reliable, high-power solution. It is suitable for individual makers, repair technicians, and businesses purchasing in bulk for product development or educational programs.
Features
-
5S five-cell protection — Manages five 18650 cells in series with cell balancing
-
25A continuous discharge — High-current capability for demanding applications
-
Balance function — Ensures even charge and discharge across all five cells
-
Comprehensive protection — Overcharge, over-discharge, and overcurrent protection
-
18650 compatibility — Designed for the most popular lithium-ion cell format
-
Solder pad design — Supports both direct soldering and spot welding
-
Compact PCB design — Sized for high-power battery packs
-
Wide application range — Power tools, e-bikes, e-scooters, energy storage
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Compatible Battery | 5S 18.5V lithium-ion (18650 cells) |
| 2 | Full Charge Voltage | 21V |
| 3 | Continuous Discharge Current | 25A |
| 4 | Overcharge Protection Voltage | ~4.25V – 4.3V per cell |
| 5 | Over-discharge Protection Voltage | ~2.5V – 3.0V per cell |
| 6 | Balance Function | Yes |
| 7 | Connection Type | Solder pads (spot welding supported) |
| 8 | Module Dimensions | Compact PCB for 5S packs |
