24V Programmable Cycle Timer Relay Module with Trigger Function

SKU: FA2190-4
Input Voltage

DC 24V
Relay Rating

10A at 250V AC / 30V DC
Channels

1 (single-channel)
Timing Mode

Cycle timing (ON/OFF repeat)
Trigger Function

External signal start/reset
ON/OFF Adjustment

Independent, adjustable
Display

Digital LED display
Terminal Type

Screw terminals

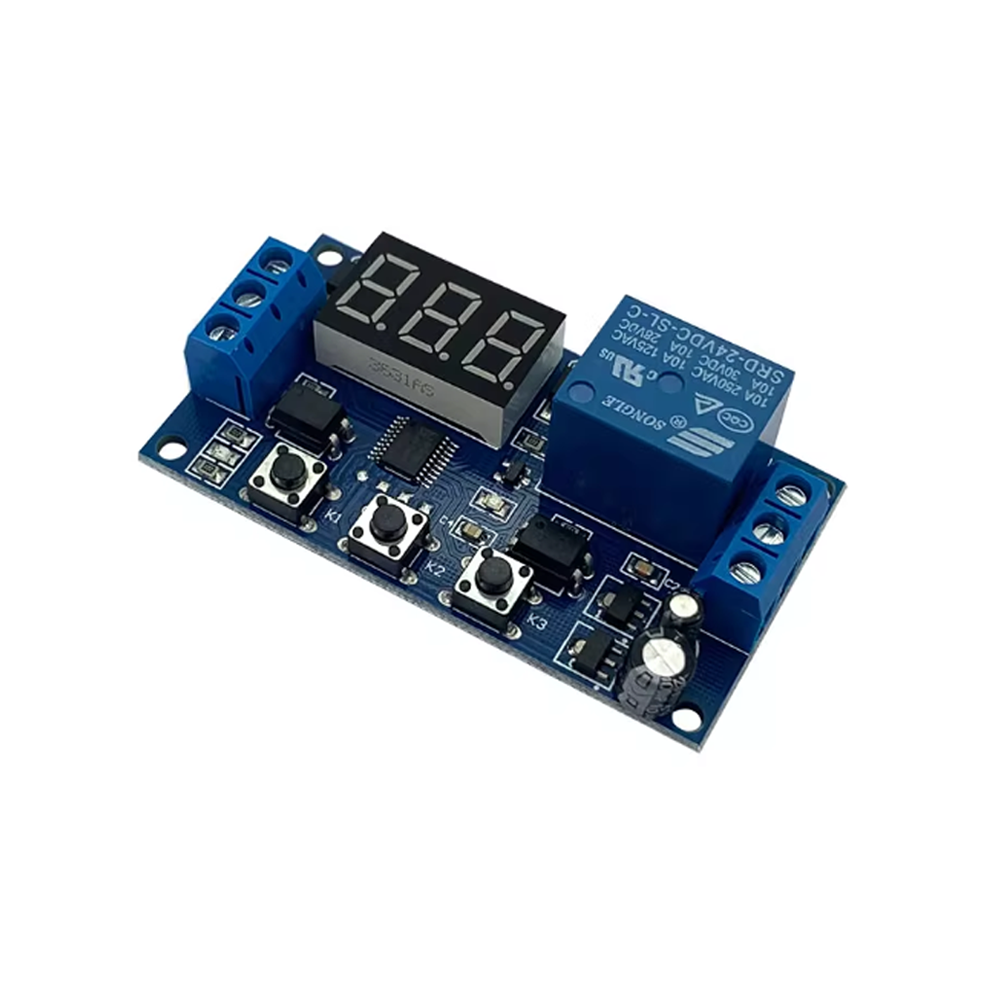

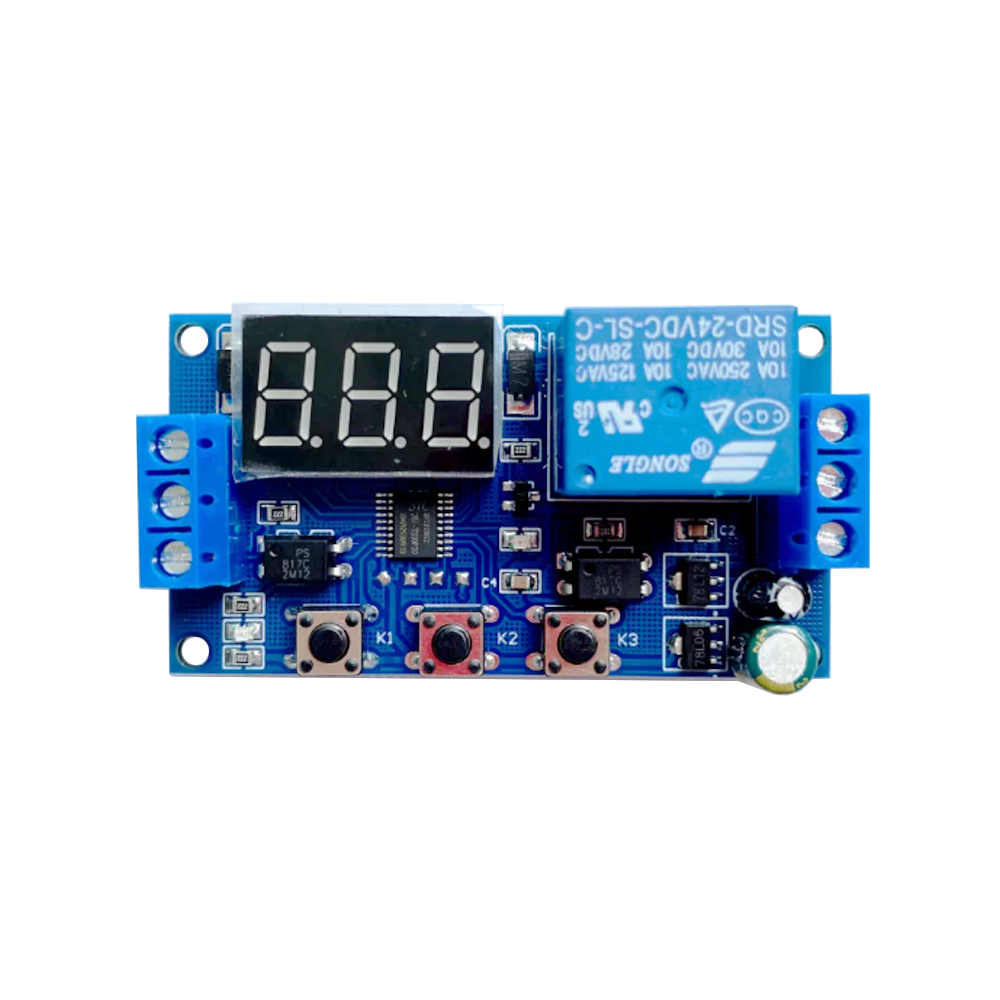

The 24V Programmable Cycle Timer Relay Module is a versatile, programmable timing controller designed for automated repetitive switching of electrical devices. It combines a high-current relay with an adjustable cycle timer and trigger function, making it an ideal solution for applications requiring periodic on/off operation — from industrial automation to home automation and DIY projects.

The module operates from a 24V DC power supply, making it compatible with common industrial control voltages, 24V battery systems, and commercial equipment. The onboard high-current relay is rated for 10A at 250V AC or 30V DC, capable of directly switching lamps, motors, pumps, solenoids, and other loads.

The module’s primary function is cycle timing mode — the relay cycles between ON and OFF states at user-defined intervals continuously. This makes it perfect for applications such as flashing lights, periodic pump operation, intermittent fan control, and cycling test equipment. The ON time and OFF time are independently adjustable, giving you full control over the duty cycle.

In addition to cycle timing, the module features a trigger function that allows an external signal to start or reset the timing sequence. This makes it suitable for applications where the timing cycle should begin in response to an event — such as a sensor activation, a button press, or a signal from another controller.

The digital LED display shows the current time settings and operating status, making configuration straightforward. The onboard buttons allow you to adjust ON time, OFF time, and other parameters without any external programmer or computer. The screw terminals provide secure connections for power, trigger input, and relay output.

The module is widely used in industrial control, home automation, aquarium and hydroponics systems, lighting effects, motor cycling, and DIY timing projects. Its simple operation and versatile cycling capability make it suitable for both beginners and experienced users.

Whether you are automating a hydroponic irrigation system, creating a flashing light effect, or cycling a pump for aeration, the 24V Programmable Cycle Timer Relay Module provides a reliable, programmable solution. It is suitable for individual makers, students, and businesses purchasing in bulk for product development or educational programs.

Features

  • 24V DC operation — Compatible with industrial control voltages and 24V battery systems

  • High-current relay — 10A at 250V AC / 30V DC switching capacity

  • Cycle timing mode — Continuous cycling at user-defined intervals

  • Independent ON and OFF time adjustment — Full control over duty cycle

  • Trigger function — External signal starts or resets the timing sequence

  • Digital LED display — Shows time settings and operating status

  • Onboard buttons — Configure modes and timings without external tools

  • Screw terminals — Secure connections for power, trigger, and load

  • Compact form factor — Suitable for embedding into enclosures and panels

  • Wide application range — Industrial control, home automation, aquarium, lighting

Technical Specifications

# Parameter Specification
1 Input Voltage DC 24V
2 Relay Rating 10A at 250V AC / 30V DC
3 Channels 1 (single-channel)
4 Timing Mode Cycle timing (ON/OFF repeat)
5 Trigger Function External signal start/reset
6 ON/OFF Adjustment Independent, adjustable
7 Display Digital LED display
8 Terminal Type Screw terminals

Usage

Getting Started

  1. Connect power — Supply DC 24V to the power input terminals. Observe correct polarity.

  2. Connect the trigger input (if used) — Wire your trigger signal source to the trigger input terminals.

  3. Connect the load — Wire the device you want to control to the relay output terminals (NO/NC/COM).

  4. Configure the cycle time — Use the onboard buttons to set the ON time and OFF time for the desired cycle. The LED display shows the current settings.

  5. Power on and test — Apply power. The relay will begin cycling between ON and OFF states at the configured intervals.

  6. Test trigger function — Apply a trigger signal to start or reset the timing sequence.

Cycle Mode Description

Parameter Function Example Setting
ON Time Duration relay stays active 5 seconds
OFF Time Duration relay stays inactive 10 seconds
Cycle ON + OFF repeated continuously 5s ON, 10s OFF, repeat
Trigger External signal starts/resets cycle Button press, sensor signal

Typical Applications

  • Industrial control — Cycling test equipment, periodic lubrication

  • Home automation — Flashing lights, intermittent fan control

  • Aquarium and hydroponics — Periodic pump and aeration cycling

  • Lighting effects — Strobe and flashing light sequences

  • Motor cycling — Intermittent motor operation for testing

  • DIY timing projects — Custom cycling circuits for various applications

Notes for Business Buyers

  • Versatile cycling function — One module supports adjustable ON/OFF cycling, reducing inventory SKUs.

  • Trigger function — Allows external event-based start or reset of timing sequences.

  • High-current relay — 10A capacity covers most small-to-medium power devices.

  • Suitable for bulk purchasing — Ideal for industrial control, automation, and educational programs.

Q: What is the 24V Programmable Cycle Timer Relay Module used for?

It is a programmable cycle timer for automated repetitive switching of electrical devices, with an additional trigger function for external control.

Q: What is the input voltage?

The module operates from DC 24V.

Q: What is the relay rating?

The relay is rated for 10A at 250V AC or 30V DC.

Q: What timing mode does the module support?

It supports cycle timing mode — the relay cycles between ON and OFF states at user-defined intervals continuously.

Q: Can I adjust the ON and OFF times independently?

Yes. The ON time and OFF time are independently adjustable, giving you full control over the duty cycle.

Q: What is the trigger function used for?

The trigger function allows an external signal to start or reset the timing sequence, making it suitable for event-based activation.

Q: How do I configure the timing?

Use the onboard buttons to set the ON and OFF times. The digital LED display shows the current settings.

Q: Does the module require an external programmer?

No. All configuration is done through the onboard buttons and LED display — no external programmer or computer is required.

Q: Can I control AC devices with this module?

Yes, if the relay is rated for AC voltage. The relay contacts can switch loads up to 250V AC / 10A. Ensure proper safety precautions when working with mains voltage.

Q: Can I purchase in bulk for an industrial project?

Yes. This module is suitable for both individual users and business purchasing, including industrial control, home automation, and educational programs.
